IaC

概述

  1. 使用代码定义基础设施（声明式：云资源、配置、工具安装）
  2. 借助 Git 实现对基础设施的版本控制

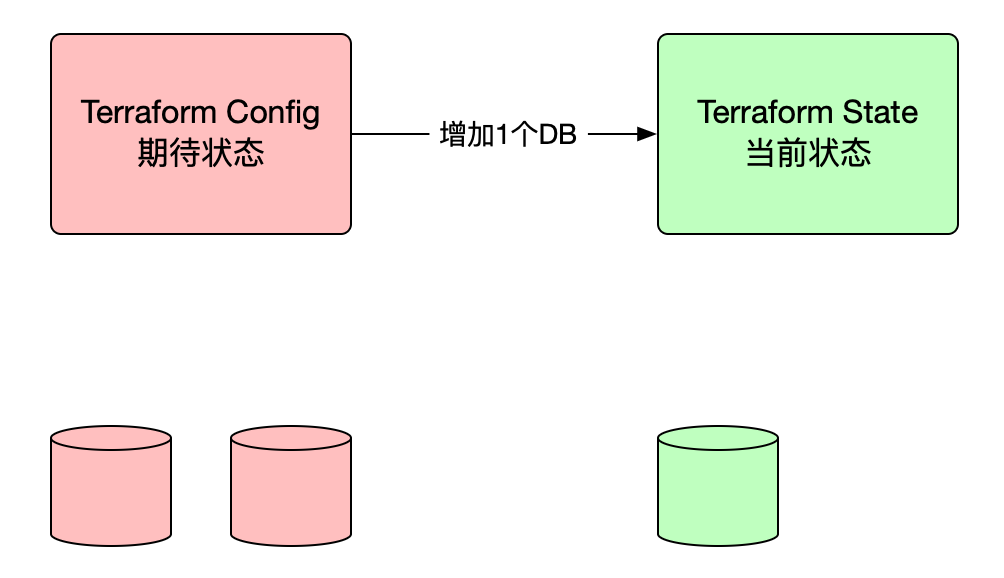

  3. 有状态 - Diff + Patch

优势

  1. 幂等
  2. 版本控制
  3. 使用 Git 进行变更管理（批准、安全检查、自动化测试）
  4. 清晰的变更行为
  5. 快速配置基础设施

能力

  1. 提供以编码工作流来创建基础设施
  2. 更改或者更新现有的基础设施
  3. 安全地更改基础设施
  4. 与 CICD 工具集成，形成 DevOps 工作流
  5. 提供可复用的模块，方便协作和共享
  6. 实施安全策略和生产标准
  7. 实现基础设施的团队协作

工具

  1. Terraform

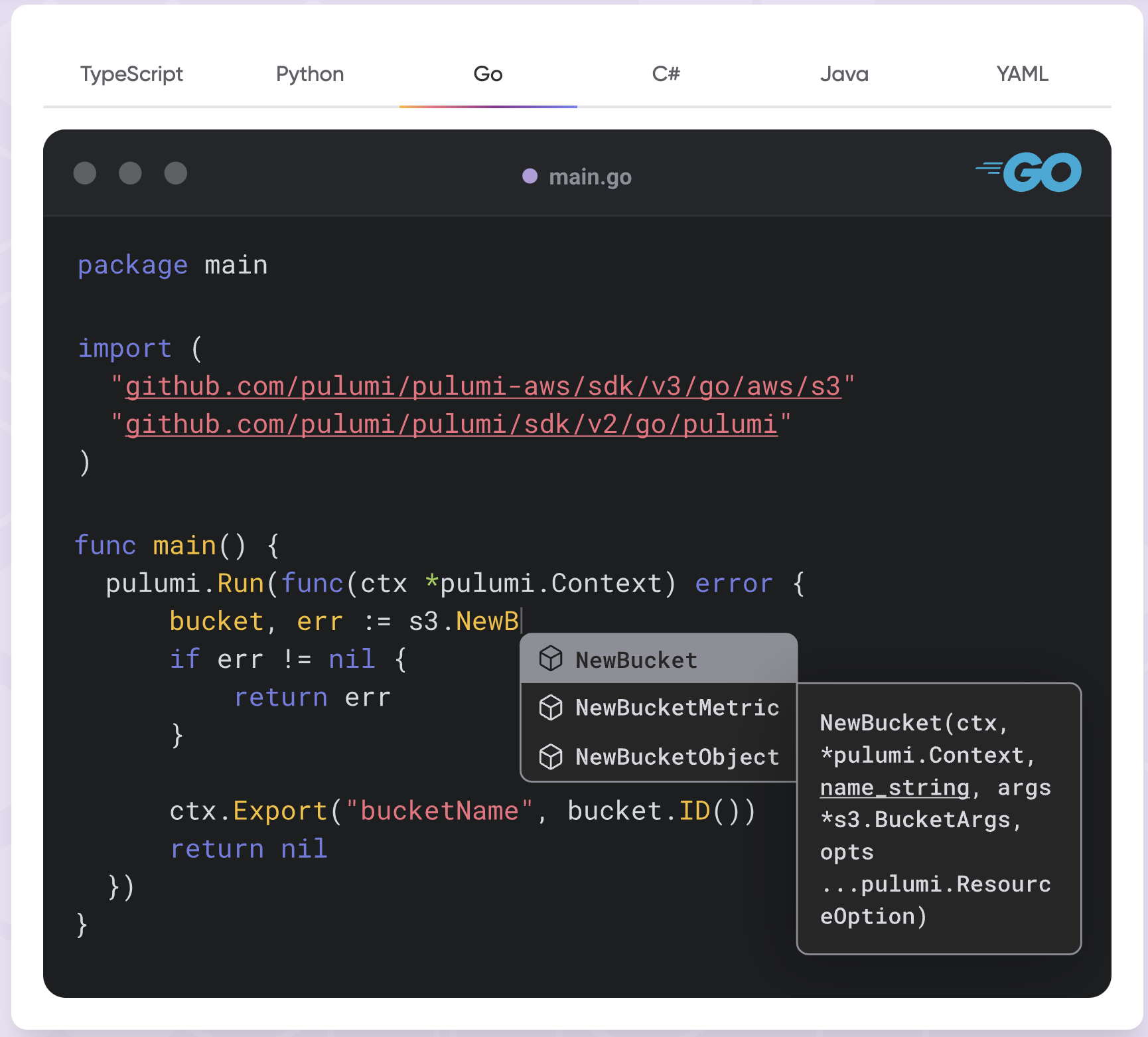

  2. Pulumi

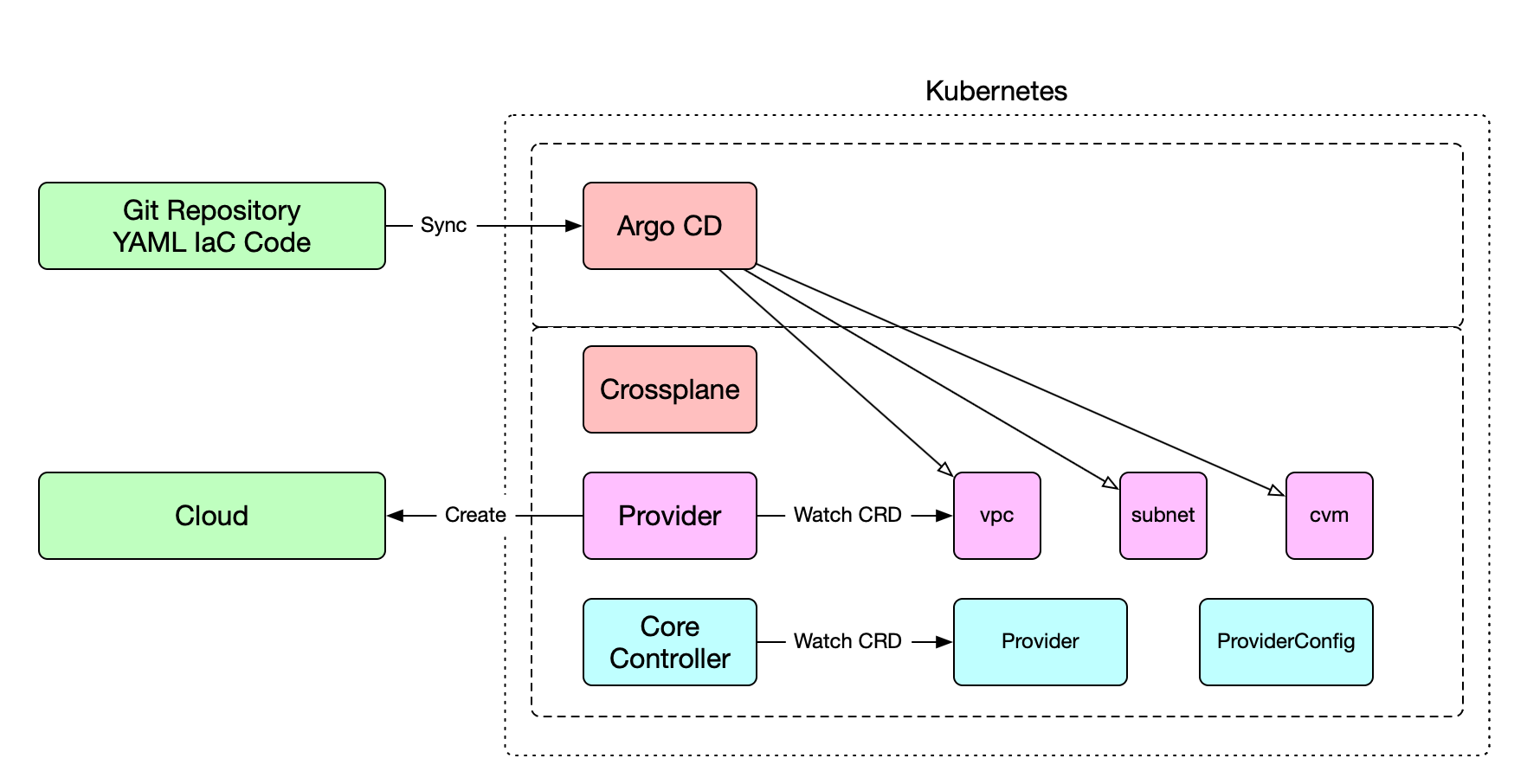

  3. Crossplane

Terraform

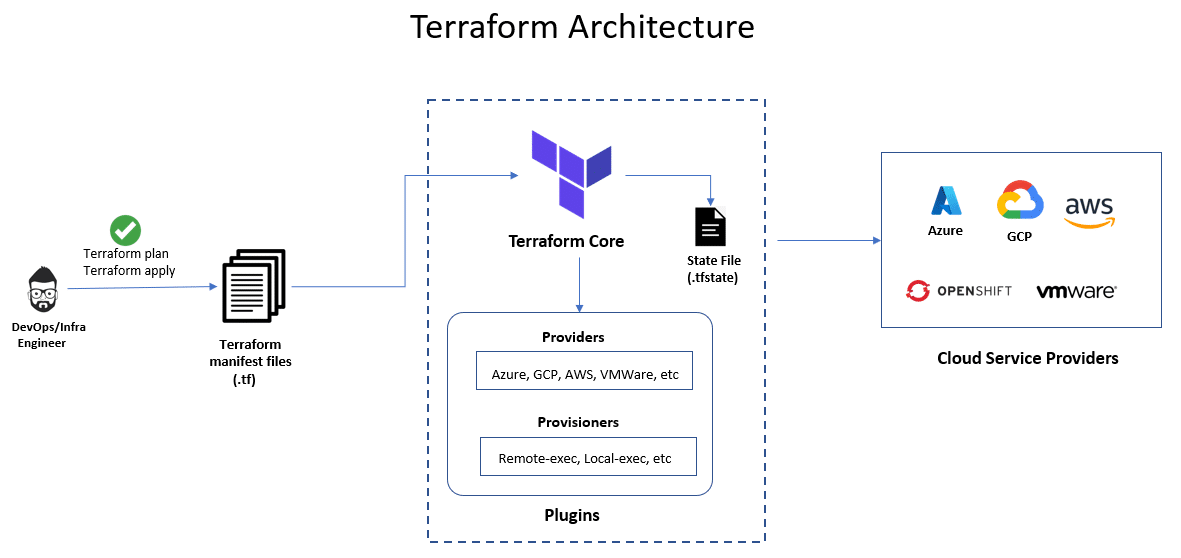

核心架构

  1. 全新的配置语言 HCL - HashiCorp configuration language
  2. 可执行的文档
  3. 人类和机器可读
  4. 学习成本低
  5. 测试、共享、重用、自动化
  6. 适用于几乎所有云厂商

HCL

最终转换为 JSON 对象，再与云厂商交互

config-hell

JSON

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
{
  "io_mode": "async",
  "service": {
    "http": {
      "web_proxy": {
        "listen_addr": "127.0.0.1:8080",
        "process": {
          "main": {
            "command": ["/usr/local/bin/awesome-app", "server"]
          },
          "mgmt": {
            "command": ["/usr/local/bin/awesome-app", "mgmt"]
          },
        }
      }
    }
  }
}

HCL

1
2
3
4
5
6
7
8
9
10
11
12
13
io_mode = "async"

service "http" "web_proxy" {
  listen_addr = "127.0.0.1:8080"

  process "main" {
    command = ["/usr/local/bin/awesome-app", "server"]
  }

  process "mgmt" {
    command = ["/usr/local/bin/awesome-app", "mgmt"]
  }
}

使用范式

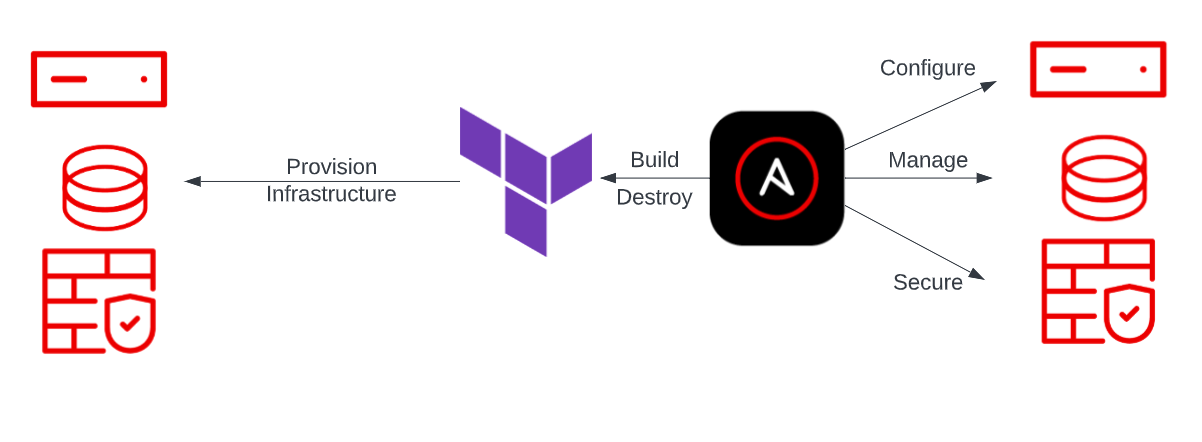

Terraform + Ansible

terraform-ansible

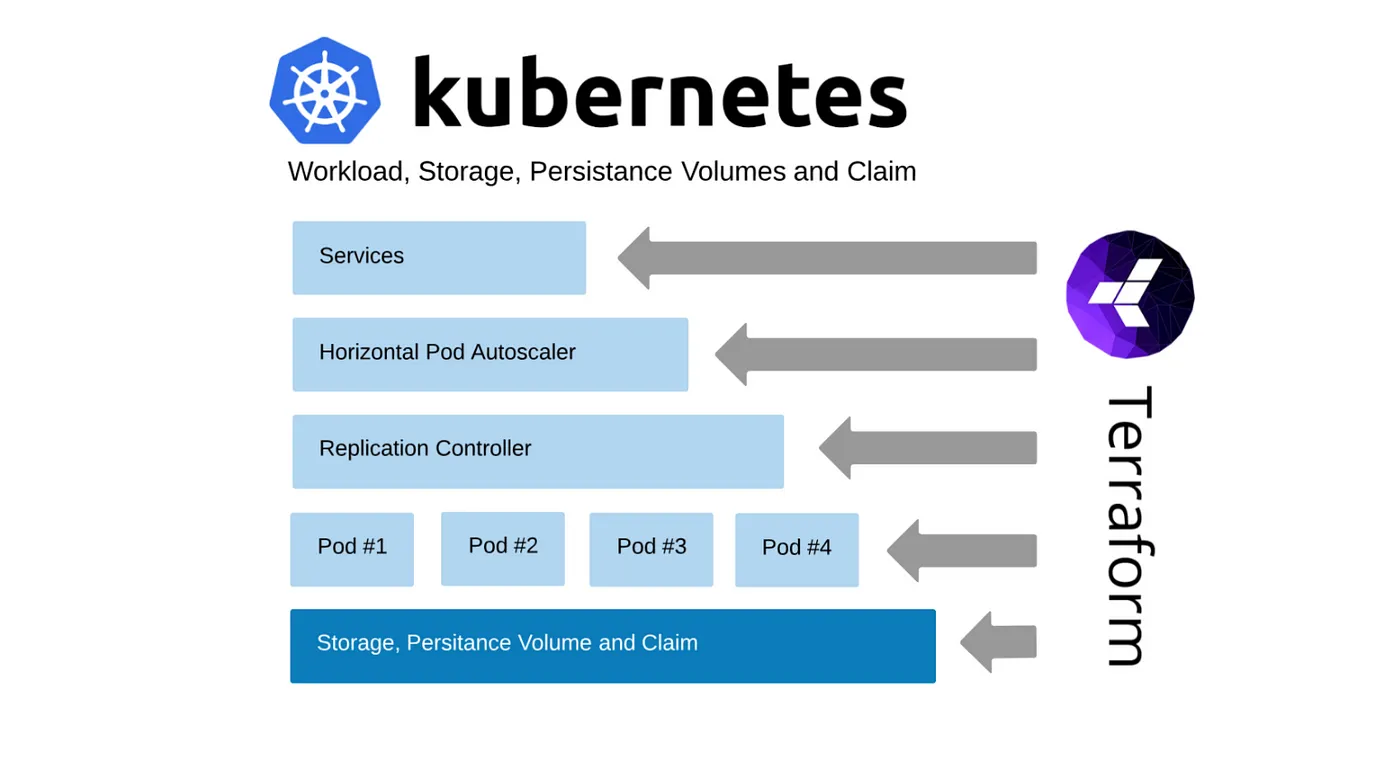

Terraform + Kubernetes

terraform-k8s

Provider 版本控制

  1. 建议固定版本，防止上游更新导致异常
  2. 默认使用最新版本
  3. 版本操作符：=、!=、\>、>=、<、<=、~>

推荐使用~>（悲观约束符，允许小版本更新，不允许大版本更新）

1
2
3
4
5
6
7
8
terraform {
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "~> 5.0"
    }
  }
}

VM

AWS

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
terraform {
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "~> 5.0"
    }
  }
}

# Configure the AWS Provider
provider "aws" {
  region = "us-west-2"
}

data "aws_ami" "this" {
  most_recent = true
  owners      = ["amazon"]
  filter {
    name   = "architecture"
    values = ["arm64"]
  }
  filter {
    name   = "name"
    values = ["al2023-ami-2023*"]
  }
}

resource "aws_instance" "this" {
  ami = data.aws_ami.this.id
  instance_market_options {
    market_type = "spot"
    spot_options {
      max_price = 0.005
    }
  }
  instance_type = "t4g.nano"
  tags = {
    Name = "test-spot"
  }
}
1
2
3
4
5
6
7
$ terraform init

$ terraform plan

$ terraform apply -auto-approve

$ terraform destroy -auto-approve

Tencent

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
terraform {
  required_providers {
    tencentcloud = {
      source = "tencentcloudstack/tencentcloud"
    }
  }
}

# Configure the TencentCloud Provider
provider "tencentcloud" {
  secret_id  = "my-secret-id"
  secret_key = "my-secret-key"
  region = "ap-guangzhou"
}

# Get availability zones
data "tencentcloud_availability_zones_by_product" "default" {
  product = "cvm"
}

# Get availability images
data "tencentcloud_images" "default" {
  image_type = ["PUBLIC_IMAGE"]
  os_name    = "ubuntu"
}

# Get availability instance types
data "tencentcloud_instance_types" "default" {
  # 机型族
  filter {
    name   = "instance-family"
    values = ["S5"]
  }

  cpu_core_count = 2
  memory_size    = 2
}

# Create a web server
resource "tencentcloud_instance" "web" {
  depends_on                 = [tencentcloud_security_group_lite_rule.default]
  instance_name              = "web server"
  availability_zone          = data.tencentcloud_availability_zones_by_product.default.zones.0.name
  image_id                   = data.tencentcloud_images.default.images.0.image_id
  instance_type              = data.tencentcloud_instance_types.default.instance_types.0.instance_type
  system_disk_type           = "CLOUD_PREMIUM"
  system_disk_size           = 50
  allocate_public_ip         = true
  internet_max_bandwidth_out = 20
  instance_charge_type       = "SPOTPAID"
  orderly_security_groups    = [tencentcloud_security_group.default.id]
  count                      = 1
}

# Create security group
resource "tencentcloud_security_group" "default" {
  name        = "web accessibility"
  description = "make it accessible for both production and stage ports"
}

# Create security group rule allow ssh request
resource "tencentcloud_security_group_lite_rule" "default" {
  security_group_id = tencentcloud_security_group.default.id
  ingress = [
    "ACCEPT#0.0.0.0/0#22#TCP",
    "ACCEPT#0.0.0.0/0#6443#TCP",
  ]

  egress = [
    "ACCEPT#0.0.0.0/0#ALL#ALL"
  ]
}

terraform init

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
$ terraform init

Initializing the backend...

Initializing provider plugins...
- Reusing previous version of tencentcloudstack/tencentcloud from the dependency lock file
- Installing tencentcloudstack/tencentcloud v1.81.23...
- Installed tencentcloudstack/tencentcloud v1.81.23 (signed by a HashiCorp partner, key ID 84F69E1C1BECF459)

Partner and community providers are signed by their developers.
If you'd like to know more about provider signing, you can read about it here:
https://www.terraform.io/docs/cli/plugins/signing.html

Terraform has made some changes to the provider dependency selections recorded
in the .terraform.lock.hcl file. Review those changes and commit them to your
version control system if they represent changes you intended to make.

Terraform has been successfully initialized!

You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.

If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
$ tree -a
.
|-- cvm.tf
|-- .terraform
|   `-- providers
|       `-- registry.terraform.io
|           `-- tencentcloudstack
|               `-- tencentcloud
|                   `-- 1.81.23
|                       `-- linux_arm64
|                           |-- CHANGELOG.md
|                           |-- LICENSE
|                           |-- README.md
|                           `-- terraform-provider-tencentcloud_v1.81.23
`-- .terraform.lock.hcl

.terraform.lock.hcl

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
# This file is maintained automatically by "terraform init".
# Manual edits may be lost in future updates.

provider "registry.terraform.io/tencentcloudstack/tencentcloud" {
  version = "1.81.23"
  hashes = [
    "h1:V6PA8E+CURfBlTqCr34HI6atLpibDw8fHvf9DgMQwkk=",
    "h1:kFMUXXC9lTl/Dp+mCpcRi3tmOof/ykHHJyrBN7OdfuA=",
    "zh:01e87a746857c29bfc3bee2292144e8a15b413530b44ed2fe2fcc63604a6c3a5",
    "zh:1b8c92e81aee582afc19f4c0ba45a08c5af7eccdb20bf27ace6b6630a2e239fc",
    "zh:2494cf7ba59ba8cbf7785c2bf0424ce0d4ca171d9b58a8925f4ac0019fa99fab",
    "zh:27996988aa160a1e3c7f62a7f044ab9980bfe4142282fc3e9fc335770a8e0d8a",
    "zh:2d27ab85fb5c28c6e489030c9010402dfcbf874d214aeb202ebcb89a468a8f5d",
    "zh:3e98bb0de64b980df294223a76ea714dfeec25e0a42c0e22f098dba9c95a13ad",
    "zh:49722329b28510f085208481cc0278b462f27feaa5995323b31428cca05d1d15",
    "zh:6796709cc6e07270718c2c3fe38b12fff137db64ac38751cb7d76c8bffe336f6",
    "zh:6d0c10a96e3e733769e0e5c7a800afbd2be80b60053d6cdba5f5b3a774d9155a",
    "zh:7d506483db03bf353eac6776c8cca6efd00b3e3065c639f5947b2b4b397f06c9",
    "zh:b05a423dcc249b28d3600dec0ddeb388a87d9c9ba9415abe4dbd0fdbee04e7b9",
    "zh:d543a61d89054fd00a4cb5659591afae73c7d8b712f389a80ad68d572f44ea10",
    "zh:d9cf82a72a4f1ca832910eb1261810b07921212153b8f509c0f1bd0bcc92badb",
    "zh:de6d1deb6d752c77f5a2e52109dd138645e3cee53939152cafee5953855cc667",
  ]
}

terraform plan

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
$ terraform plan
data.tencentcloud_instance_types.default: Reading...
data.tencentcloud_images.default: Reading...
data.tencentcloud_availability_zones_by_product.default: Reading...
data.tencentcloud_availability_zones_by_product.default: Read complete after 1s [id=556068968]
data.tencentcloud_images.default: Read complete after 2s [id=4102863276]
data.tencentcloud_instance_types.default: Read complete after 3s [id=3046689892]

Terraform used the selected providers to generate the following execution
plan. Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  # tencentcloud_instance.web[0] will be created
  + resource "tencentcloud_instance" "web" {
      + allocate_public_ip                      = true
      + availability_zone                       = "ap-guangzhou-6"
      + create_time                             = (known after apply)
      + disable_api_termination                 = false
      + disable_monitor_service                 = false
      + disable_security_service                = false
      + expired_time                            = (known after apply)
      + force_delete                            = false
      + id                                      = (known after apply)
      + image_id                                = "img-487zeit5"
      + instance_charge_type                    = "SPOTPAID"
      + instance_charge_type_prepaid_renew_flag = (known after apply)
      + instance_name                           = "web server"
      + instance_status                         = (known after apply)
      + instance_type                           = "S5.MEDIUM2"
      + internet_charge_type                    = (known after apply)
      + internet_max_bandwidth_out              = 20
      + key_ids                                 = (known after apply)
      + key_name                                = (known after apply)
      + orderly_security_groups                 = (known after apply)
      + private_ip                              = (known after apply)
      + project_id                              = 0
      + public_ip                               = (known after apply)
      + running_flag                            = true
      + security_groups                         = (known after apply)
      + subnet_id                               = (known after apply)
      + system_disk_id                          = (known after apply)
      + system_disk_size                        = 50
      + system_disk_type                        = "CLOUD_PREMIUM"
      + vpc_id                                  = (known after apply)
    }

  # tencentcloud_security_group.default will be created
  + resource "tencentcloud_security_group" "default" {
      + description = "make it accessible for both production and stage ports"
      + id          = (known after apply)
      + name        = "web accessibility"
      + project_id  = (known after apply)
    }

  # tencentcloud_security_group_lite_rule.default will be created
  + resource "tencentcloud_security_group_lite_rule" "default" {
      + egress            = [
          + "ACCEPT#0.0.0.0/0#ALL#ALL",
        ]
      + id                = (known after apply)
      + ingress           = [
          + "ACCEPT#0.0.0.0/0#22#TCP",
          + "ACCEPT#0.0.0.0/0#6443#TCP",
        ]
      + security_group_id = (known after apply)
    }

Plan: 3 to add, 0 to change, 0 to destroy.

─────────────────────────────────────────────────────────────────────────────

Note: You didn't use the -out option to save this plan, so Terraform can't
guarantee to take exactly these actions if you run "terraform apply" now.

image-20240225182940259

terraform apply

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
$ terraform apply -auto-approve
data.tencentcloud_instance_types.default: Reading...
data.tencentcloud_availability_zones_by_product.default: Reading...
data.tencentcloud_images.default: Reading...
data.tencentcloud_availability_zones_by_product.default: Read complete after 1s [id=556068968]
data.tencentcloud_images.default: Read complete after 1s [id=4102863276]
data.tencentcloud_instance_types.default: Read complete after 2s [id=3046689892]

Terraform used the selected providers to generate the following execution plan. Resource
actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  # tencentcloud_instance.web[0] will be created
  + resource "tencentcloud_instance" "web" {
      + allocate_public_ip                      = true
      + availability_zone                       = "ap-guangzhou-6"
      + create_time                             = (known after apply)
      + disable_api_termination                 = false
      + disable_monitor_service                 = false
      + disable_security_service                = false
      + expired_time                            = (known after apply)
      + force_delete                            = false
      + id                                      = (known after apply)
      + image_id                                = "img-487zeit5"
      + instance_charge_type                    = "SPOTPAID"
      + instance_charge_type_prepaid_renew_flag = (known after apply)
      + instance_name                           = "web server"
      + instance_status                         = (known after apply)
      + instance_type                           = "S5.MEDIUM2"
      + internet_charge_type                    = (known after apply)
      + internet_max_bandwidth_out              = 20
      + key_ids                                 = (known after apply)
      + key_name                                = (known after apply)
      + orderly_security_groups                 = (known after apply)
      + private_ip                              = (known after apply)
      + project_id                              = 0
      + public_ip                               = (known after apply)
      + running_flag                            = true
      + security_groups                         = (known after apply)
      + subnet_id                               = (known after apply)
      + system_disk_id                          = (known after apply)
      + system_disk_size                        = 50
      + system_disk_type                        = "CLOUD_PREMIUM"
      + vpc_id                                  = (known after apply)
    }

  # tencentcloud_security_group.default will be created
  + resource "tencentcloud_security_group" "default" {
      + description = "make it accessible for both production and stage ports"
      + id          = (known after apply)
      + name        = "web accessibility"
      + project_id  = (known after apply)
    }

  # tencentcloud_security_group_lite_rule.default will be created
  + resource "tencentcloud_security_group_lite_rule" "default" {
      + egress            = [
          + "ACCEPT#0.0.0.0/0#ALL#ALL",
        ]
      + id                = (known after apply)
      + ingress           = [
          + "ACCEPT#0.0.0.0/0#22#TCP",
          + "ACCEPT#0.0.0.0/0#6443#TCP",
        ]
      + security_group_id = (known after apply)
    }

Plan: 3 to add, 0 to change, 0 to destroy.
tencentcloud_security_group.default: Creating...
tencentcloud_security_group.default: Creation complete after 1s [id=sg-2kejmpxj]
tencentcloud_security_group_lite_rule.default: Creating...
tencentcloud_security_group_lite_rule.default: Creation complete after 0s [id=sg-2kejmpxj]
tencentcloud_instance.web[0]: Creating...
tencentcloud_instance.web[0]: Still creating... [10s elapsed]
tencentcloud_instance.web[0]: Still creating... [20s elapsed]
tencentcloud_instance.web[0]: Still creating... [30s elapsed]
tencentcloud_instance.web[0]: Creation complete after 34s [id=ins-lpfh806e]

Apply complete! Resources: 3 added, 0 changed, 0 destroyed.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
$ tree -a
.
|-- cvm.tf
|-- .terraform
|   `-- providers
|       `-- registry.terraform.io
|           `-- tencentcloudstack
|               `-- tencentcloud
|                   `-- 1.81.23
|                       `-- linux_arm64
|                           |-- CHANGELOG.md
|                           |-- LICENSE
|                           |-- README.md
|                           `-- terraform-provider-tencentcloud_v1.81.23
|-- .terraform.lock.hcl
|-- terraform.tfstate
`-- terraform.tfstate.backup

terraform.tfstate - 记录所有状态信息（包括敏感信息），随着 terraform destroy 而清空

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
{
  "version": 4,
  "terraform_version": "1.7.4",
  "serial": 15,
  "lineage": "8348f63a-7e72-e08d-c0b7-ac0c8613d6b3",
  "outputs": {},
  "resources": [
    {
      "mode": "data",
      "type": "tencentcloud_availability_zones_by_product",
      "name": "default",
      "provider": "provider[\"registry.terraform.io/tencentcloudstack/tencentcloud\"]",
      "instances": [
        {
          "schema_version": 0,
          "attributes": {
            "id": "556068968",
            "include_unavailable": null,
            "name": null,
            "product": "cvm",
            "result_output_file": null,
            "zones": [
              {
                "description": "Guangzhou Zone 6",
                "id": "100006",
                "name": "ap-guangzhou-6",
                "state": "AVAILABLE"
              },
              {
                "description": "Guangzhou Zone 7",
                "id": "100007",
                "name": "ap-guangzhou-7",
                "state": "AVAILABLE"
              }
            ]
          },
          "sensitive_attributes": []
        }
      ]
    },
    {
      "mode": "data",
      "type": "tencentcloud_images",
      "name": "default",
      "provider": "provider[\"registry.terraform.io/tencentcloudstack/tencentcloud\"]",
      "instances": [
        {
          "schema_version": 0,
          "attributes": {
            "id": "4102863276",
            "image_id": null,
            "image_name_regex": null,
            "image_type": [
              "PUBLIC_IMAGE"
            ],
            "images": [
              {
                "architecture": "x86_64",
                "created_time": "",
                "image_creator": "",
                "image_description": "Ubuntu Server 22.04 LTS 64bit",
                "image_id": "img-487zeit5",
                "image_name": "Ubuntu Server 22.04 LTS 64bit",
                "image_size": 20,
                "image_source": "OFFICIAL",
                "image_state": "NORMAL",
                "image_type": "PUBLIC_IMAGE",
                "os_name": "Ubuntu Server 22.04 LTS 64bit",
                "platform": "Ubuntu",
                "snapshots": [],
                "support_cloud_init": true,
                "sync_percent": 0
              },
              {
                "architecture": "x86_64",
                "created_time": "",
                "image_creator": "",
                "image_description": "Ubuntu Server 20.04 LTS 64bit",
                "image_id": "img-22trbn9x",
                "image_name": "Ubuntu Server 20.04 LTS 64bit",
                "image_size": 20,
                "image_source": "OFFICIAL",
                "image_state": "NORMAL",
                "image_type": "PUBLIC_IMAGE",
                "os_name": "Ubuntu Server 20.04 LTS 64bit",
                "platform": "Ubuntu",
                "snapshots": [],
                "support_cloud_init": true,
                "sync_percent": 0
              },
              {
                "architecture": "x86_64",
                "created_time": "",
                "image_creator": "",
                "image_description": "Ubuntu Server 20.04 LTS 64bit GRID11.1",
                "image_id": "img-j10l2cnz",
                "image_name": "Ubuntu Server 20.04 LTS 64bit GRID11.1",
                "image_size": 20,
                "image_source": "OFFICIAL",
                "image_state": "NORMAL",
                "image_type": "PUBLIC_IMAGE",
                "os_name": "Ubuntu Server 20.04 LTS 64bit GRID11.1",
                "platform": "Ubuntu",
                "snapshots": [],
                "support_cloud_init": true,
                "sync_percent": 0
              },
              {
                "architecture": "arm",
                "created_time": "",
                "image_creator": "",
                "image_description": "Ubuntu 20.04(arm64)",
                "image_id": "img-2eokmhf5",
                "image_name": "Ubuntu 20.04(arm64)",
                "image_size": 20,
                "image_source": "OFFICIAL",
                "image_state": "NORMAL",
                "image_type": "PUBLIC_IMAGE",
                "os_name": "Ubuntu 20.04(arm64)",
                "platform": "Ubuntu",
                "snapshots": [],
                "support_cloud_init": true,
                "sync_percent": 0
              },
              {
                "architecture": "x86_64",
                "created_time": "",
                "image_creator": "",
                "image_description": "Ubuntu Server 18.04 LTS 64bit",
                "image_id": "img-pi0ii46r",
                "image_name": "Ubuntu Server 18.04 LTS 64bit",
                "image_size": 20,
                "image_source": "OFFICIAL",
                "image_state": "NORMAL",
                "image_type": "PUBLIC_IMAGE",
                "os_name": "Ubuntu Server 18.04 LTS 64bit",
                "platform": "Ubuntu",
                "snapshots": [],
                "support_cloud_init": true,
                "sync_percent": 0
              },
              {
                "architecture": "arm",
                "created_time": "",
                "image_creator": "",
                "image_description": "Ubuntu 18.04(arm64)",
                "image_id": "img-9eh8c1p1",
                "image_name": "Ubuntu 18.04(arm64)",
                "image_size": 20,
                "image_source": "OFFICIAL",
                "image_state": "NORMAL",
                "image_type": "PUBLIC_IMAGE",
                "os_name": "Ubuntu 18.04(arm64)",
                "platform": "Ubuntu",
                "snapshots": [],
                "support_cloud_init": true,
                "sync_percent": 0
              },
              {
                "architecture": "x86_64",
                "created_time": "",
                "image_creator": "",
                "image_description": "Ubuntu Server 16.04 LTS 64bit",
                "image_id": "img-pyqx34y1",
                "image_name": "Ubuntu Server 16.04 LTS 64bit",
                "image_size": 20,
                "image_source": "OFFICIAL",
                "image_state": "NORMAL",
                "image_type": "PUBLIC_IMAGE",
                "os_name": "Ubuntu Server 16.04 LTS 64bit",
                "platform": "Ubuntu",
                "snapshots": [],
                "support_cloud_init": true,
                "sync_percent": 0
              },
              {
                "architecture": "i386",
                "created_time": "",
                "image_creator": "",
                "image_description": "Ubuntu Server 16.04 LTS 32bit",
                "image_id": "img-8u6dn6p1",
                "image_name": "Ubuntu Server 16.04 LTS 32bit",
                "image_size": 20,
                "image_source": "OFFICIAL",
                "image_state": "NORMAL",
                "image_type": "PUBLIC_IMAGE",
                "os_name": "Ubuntu Server 16.04 LTS 32bit",
                "platform": "Ubuntu",
                "snapshots": [],
                "support_cloud_init": true,
                "sync_percent": 0
              },
              {
                "architecture": "x86_64",
                "created_time": "",
                "image_creator": "",
                "image_description": "Ubuntu Server 14.04 LTS 64bit",
                "image_id": "img-3wnd9xpl",
                "image_name": "Ubuntu Server 14.04 LTS 64bit",
                "image_size": 20,
                "image_source": "OFFICIAL",
                "image_state": "NORMAL",
                "image_type": "PUBLIC_IMAGE",
                "os_name": "Ubuntu Server 14.04 LTS 64bit",
                "platform": "Ubuntu",
                "snapshots": [],
                "support_cloud_init": true,
                "sync_percent": 0
              },
              {
                "architecture": "i386",
                "created_time": "",
                "image_creator": "",
                "image_description": "Ubuntu Server 14.04 LTS 32bit",
                "image_id": "img-qpxvpujt",
                "image_name": "Ubuntu Server 14.04 LTS 32bit",
                "image_size": 50,
                "image_source": "OFFICIAL",
                "image_state": "NORMAL",
                "image_type": "PUBLIC_IMAGE",
                "os_name": "Ubuntu Server 14.04 LTS 32bit",
                "platform": "Ubuntu",
                "snapshots": [],
                "support_cloud_init": false,
                "sync_percent": 0
              },
              {
                "architecture": "x86_64",
                "created_time": "",
                "image_creator": "",
                "image_description": "Ubuntu Server 20.04 LTS 64bit GRID16.2",
                "image_id": "img-rx55p5nv",
                "image_name": "Ubuntu Server 20.04 LTS 64bit GRID16.2",
                "image_size": 20,
                "image_source": "OFFICIAL",
                "image_state": "NORMAL",
                "image_type": "PUBLIC_IMAGE",
                "os_name": "Ubuntu Server 20.04 LTS 64bit GRID16.2",
                "platform": "Ubuntu",
                "snapshots": [],
                "support_cloud_init": true,
                "sync_percent": 0
              },
              {
                "architecture": "x86_64",
                "created_time": "",
                "image_creator": "",
                "image_description": "Ubuntu Server 22.04 LTS 64bit GRID16.2",
                "image_id": "img-fipweiwz",
                "image_name": "Ubuntu Server 22.04 LTS 64bit GRID16.2",
                "image_size": 20,
                "image_source": "OFFICIAL",
                "image_state": "NORMAL",
                "image_type": "PUBLIC_IMAGE",
                "os_name": "Ubuntu Server 22.04 LTS 64bit GRID16.2",
                "platform": "Ubuntu",
                "snapshots": [],
                "support_cloud_init": true,
                "sync_percent": 0
              }
            ],
            "instance_type": null,
            "os_name": "ubuntu",
            "result_output_file": null
          },
          "sensitive_attributes": []
        }
      ]
    },
    {
      "mode": "data",
      "type": "tencentcloud_instance_types",
      "name": "default",
      "provider": "provider[\"registry.terraform.io/tencentcloudstack/tencentcloud\"]",
      "instances": [
        {
          "schema_version": 0,
          "attributes": {
            "availability_zone": null,
            "cpu_core_count": 2,
            "exclude_sold_out": false,
            "filter": [
              {
                "name": "instance-family",
                "values": [
                  "S5"
                ]
              }
            ],
            "gpu_core_count": null,
            "id": "3046689892",
            "instance_types": [
              {
                "availability_zone": "ap-guangzhou-6",
                "cpu_core_count": 2,
                "family": "S5",
                "gpu_core_count": 0,
                "instance_charge_type": "PREPAID",
                "instance_type": "S5.MEDIUM2",
                "memory_size": 2,
                "status": "SELL"
              },
              {
                "availability_zone": "ap-guangzhou-7",
                "cpu_core_count": 2,
                "family": "S5",
                "gpu_core_count": 0,
                "instance_charge_type": "PREPAID",
                "instance_type": "S5.MEDIUM2",
                "memory_size": 2,
                "status": "SELL"
              },
              {
                "availability_zone": "ap-guangzhou-6",
                "cpu_core_count": 2,
                "family": "S5",
                "gpu_core_count": 0,
                "instance_charge_type": "POSTPAID_BY_HOUR",
                "instance_type": "S5.MEDIUM2",
                "memory_size": 2,
                "status": "SELL"
              },
              {
                "availability_zone": "ap-guangzhou-7",
                "cpu_core_count": 2,
                "family": "S5",
                "gpu_core_count": 0,
                "instance_charge_type": "POSTPAID_BY_HOUR",
                "instance_type": "S5.MEDIUM2",
                "memory_size": 2,
                "status": "SELL"
              },
              {
                "availability_zone": "ap-guangzhou-6",
                "cpu_core_count": 2,
                "family": "S5",
                "gpu_core_count": 0,
                "instance_charge_type": "SPOTPAID",
                "instance_type": "S5.MEDIUM2",
                "memory_size": 2,
                "status": "SELL"
              },
              {
                "availability_zone": "ap-guangzhou-7",
                "cpu_core_count": 2,
                "family": "S5",
                "gpu_core_count": 0,
                "instance_charge_type": "SPOTPAID",
                "instance_type": "S5.MEDIUM2",
                "memory_size": 2,
                "status": "SELL"
              }
            ],
            "memory_size": 2,
            "result_output_file": null
          },
          "sensitive_attributes": []
        }
      ]
    },
    {
      "mode": "managed",
      "type": "tencentcloud_instance",
      "name": "web",
      "provider": "provider[\"registry.terraform.io/tencentcloudstack/tencentcloud\"]",
      "instances": [
        {
          "index_key": 0,
          "schema_version": 0,
          "attributes": {
            "allocate_public_ip": true,
            "availability_zone": "ap-guangzhou-6",
            "bandwidth_package_id": null,
            "cam_role_name": "",
            "cdh_host_id": null,
            "cdh_instance_type": null,
            "create_time": "2022-02-25T10:33:41Z",
            "data_disks": [],
            "disable_api_termination": false,
            "disable_monitor_service": false,
            "disable_security_service": false,
            "expired_time": "",
            "force_delete": false,
            "hostname": null,
            "id": "ins-lpfh806e",
            "image_id": "img-487zeit5",
            "instance_charge_type": "SPOTPAID",
            "instance_charge_type_prepaid_period": null,
            "instance_charge_type_prepaid_renew_flag": "",
            "instance_count": null,
            "instance_name": "web server",
            "instance_status": "RUNNING",
            "instance_type": "S5.MEDIUM2",
            "internet_charge_type": "TRAFFIC_POSTPAID_BY_HOUR",
            "internet_max_bandwidth_out": 20,
            "keep_image_login": null,
            "key_ids": [],
            "key_name": "",
            "orderly_security_groups": [
              "sg-2kejmpxj"
            ],
            "password": null,
            "placement_group_id": null,
            "private_ip": "172.16.0.16",
            "project_id": 0,
            "public_ip": "43.136.79.182",
            "running_flag": true,
            "security_groups": [
              "sg-2kejmpxj"
            ],
            "spot_instance_type": null,
            "spot_max_price": null,
            "stopped_mode": null,
            "subnet_id": "subnet-k4efzogs",
            "system_disk_id": "disk-l83hv6we",
            "system_disk_size": 50,
            "system_disk_type": "CLOUD_PREMIUM",
            "tags": null,
            "user_data": null,
            "user_data_raw": null,
            "vpc_id": "vpc-bt2uih1l"
          },
          "sensitive_attributes": [],
          "private": "bnVsbA==",
          "dependencies": [
            "data.tencentcloud_availability_zones_by_product.default",
            "data.tencentcloud_images.default",
            "data.tencentcloud_instance_types.default",
            "tencentcloud_security_group.default",
            "tencentcloud_security_group_lite_rule.default"
          ]
        }
      ]
    },
    {
      "mode": "managed",
      "type": "tencentcloud_security_group",
      "name": "default",
      "provider": "provider[\"registry.terraform.io/tencentcloudstack/tencentcloud\"]",
      "instances": [
        {
          "schema_version": 0,
          "attributes": {
            "description": "make it accessible for both production and stage ports",
            "id": "sg-2kejmpxj",
            "name": "web accessibility",
            "project_id": 0,
            "tags": null
          },
          "sensitive_attributes": [],
          "private": "bnVsbA=="
        }
      ]
    },
    {
      "mode": "managed",
      "type": "tencentcloud_security_group_lite_rule",
      "name": "default",
      "provider": "provider[\"registry.terraform.io/tencentcloudstack/tencentcloud\"]",
      "instances": [
        {
          "schema_version": 0,
          "attributes": {
            "egress": [
              "ACCEPT#0.0.0.0/0#ALL#ALL"
            ],
            "id": "sg-2kejmpxj",
            "ingress": [
              "ACCEPT#0.0.0.0/0#22#TCP",
              "ACCEPT#0.0.0.0/0#6443#TCP"
            ],
            "security_group_id": "sg-2kejmpxj"
          },
          "sensitive_attributes": [],
          "private": "bnVsbA==",
          "dependencies": [
            "tencentcloud_security_group.default"
          ]
        }
      ]
    }
  ],
  "check_results": null
}

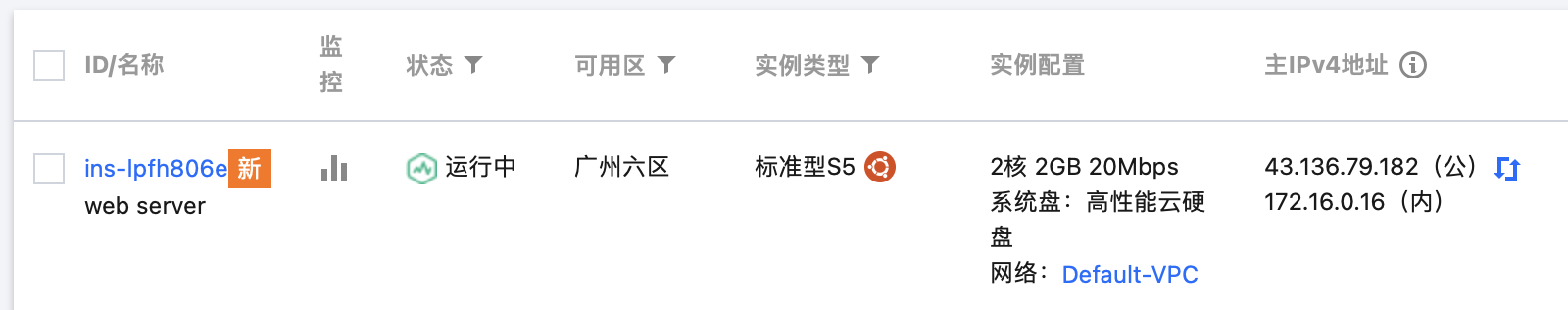

image-20240225183655086

导入资源

适用场景

  1. 资源一开始并不是由 Terraform 创建的
  2. state 文件丢失，需要重新拉取真实的状态

导入的资源必须在 Terraform Config 中已定义

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
$ rm -rf terraform.tfstate*

$ tree -a
.
|-- cvm.tf
|-- .terraform
|   `-- providers
|       `-- registry.terraform.io
|           `-- tencentcloudstack
|               `-- tencentcloud
|                   `-- 1.81.23
|                       `-- linux_arm64
|                           |-- CHANGELOG.md
|                           |-- LICENSE
|                           |-- README.md
|                           `-- terraform-provider-tencentcloud_v1.81.23
`-- .terraform.lock.hcl

$ terraform import 'tencentcloud_instance.web[0]' ins-f5eay7pe
data.tencentcloud_availability_zones_by_product.default: Reading...
data.tencentcloud_instance_types.default: Reading...
data.tencentcloud_images.default: Reading...
data.tencentcloud_availability_zones_by_product.default: Read complete after 0s [id=556068968]
data.tencentcloud_images.default: Read complete after 1s [id=4102863276]
data.tencentcloud_instance_types.default: Read complete after 2s [id=3046689892]
tencentcloud_instance.web[0]: Importing from ID "ins-f5eay7pe"...
tencentcloud_instance.web[0]: Import prepared!
  Prepared tencentcloud_instance for import
tencentcloud_instance.web[0]: Refreshing state... [id=ins-f5eay7pe]

Import successful!

The resources that were imported are shown above. These resources are now in
your Terraform state and will henceforth be managed by Terraform.

$ terraform state list
data.tencentcloud_availability_zones_by_product.default
data.tencentcloud_images.default
data.tencentcloud_instance_types.default
tencentcloud_instance.web[0]

$ terraform destroy -auto-approve
data.tencentcloud_instance_types.default: Reading...
data.tencentcloud_availability_zones_by_product.default: Reading...
data.tencentcloud_images.default: Reading...
data.tencentcloud_availability_zones_by_product.default: Read complete after 0s [id=556068968]
data.tencentcloud_images.default: Read complete after 1s [id=4102863276]
data.tencentcloud_instance_types.default: Read complete after 2s [id=3046689892]
tencentcloud_instance.web[0]: Refreshing state... [id=ins-f5eay7pe]

Terraform used the selected providers to generate the following execution plan. Resource
actions are indicated with the following symbols:
  - destroy

Terraform will perform the following actions:

  # tencentcloud_instance.web[0] will be destroyed
  - resource "tencentcloud_instance" "web" {
      - allocate_public_ip         = true -> null
      - availability_zone          = "ap-guangzhou-6" -> null
      - create_time                = "2024-02-25T11:16:33Z" -> null
      - disable_api_termination    = false -> null
      - id                         = "ins-f5eay7pe" -> null
      - image_id                   = "img-487zeit5" -> null
      - instance_charge_type       = "SPOTPAID" -> null
      - instance_name              = "web server" -> null
      - instance_status            = "RUNNING" -> null
      - instance_type              = "S5.MEDIUM2" -> null
      - internet_charge_type       = "TRAFFIC_POSTPAID_BY_HOUR" -> null
      - internet_max_bandwidth_out = 20 -> null
      - key_ids                    = [] -> null
      - orderly_security_groups    = [
          - "sg-jjtwxgj3",
        ] -> null
      - private_ip                 = "172.16.0.6" -> null
      - project_id                 = 0 -> null
      - public_ip                  = "119.91.237.229" -> null
      - running_flag               = true -> null
      - security_groups            = [
          - "sg-jjtwxgj3",
        ] -> null
      - subnet_id                  = "subnet-k4efzogs" -> null
      - system_disk_id             = "disk-e36wihvw" -> null
      - system_disk_size           = 50 -> null
      - system_disk_type           = "CLOUD_PREMIUM" -> null
      - tags                       = {} -> null
      - vpc_id                     = "vpc-bt2uih1l" -> null
    }

Plan: 0 to add, 0 to change, 1 to destroy.
tencentcloud_instance.web[0]: Destroying... [id=ins-f5eay7pe]
tencentcloud_instance.web[0]: Destruction complete after 6s

Destroy complete! Resources: 1 destroyed.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
$ terraform import 'tencentcloud_security_group.default' sg-jjtwxgj3
tencentcloud_security_group.default: Importing from ID "sg-jjtwxgj3"...
data.tencentcloud_instance_types.default: Reading...
data.tencentcloud_availability_zones_by_product.default: Reading...
tencentcloud_security_group.default: Import prepared!
  Prepared tencentcloud_security_group for import
tencentcloud_security_group.default: Refreshing state... [id=sg-jjtwxgj3]
data.tencentcloud_images.default: Reading...
data.tencentcloud_availability_zones_by_product.default: Read complete after 0s [id=556068968]
data.tencentcloud_images.default: Read complete after 1s [id=4102863276]
data.tencentcloud_instance_types.default: Read complete after 1s [id=3046689892]

Import successful!

The resources that were imported are shown above. These resources are now in
your Terraform state and will henceforth be managed by Terraform.

$ terraform state list
data.tencentcloud_availability_zones_by_product.default
data.tencentcloud_images.default
data.tencentcloud_instance_types.default
tencentcloud_security_group.default

$ terraform destroy -auto-approve
data.tencentcloud_instance_types.default: Reading...
tencentcloud_security_group.default: Refreshing state... [id=sg-jjtwxgj3]
data.tencentcloud_availability_zones_by_product.default: Reading...
data.tencentcloud_images.default: Reading...
data.tencentcloud_availability_zones_by_product.default: Read complete after 1s [id=556068968]
data.tencentcloud_images.default: Read complete after 1s [id=4102863276]
data.tencentcloud_instance_types.default: Read complete after 2s [id=3046689892]

Terraform used the selected providers to generate the following execution plan. Resource
actions are indicated with the following symbols:
  - destroy

Terraform will perform the following actions:

  # tencentcloud_security_group.default will be destroyed
  - resource "tencentcloud_security_group" "default" {
      - description = "make it accessible for both production and stage ports" -> null
      - id          = "sg-jjtwxgj3" -> null
      - name        = "web accessibility" -> null
      - project_id  = 0 -> null
      - tags        = {} -> null
    }

Plan: 0 to add, 0 to change, 1 to destroy.
tencentcloud_security_group.default: Destroying... [id=sg-jjtwxgj3]
tencentcloud_security_group.default: Destruction complete after 0s

Destroy complete! Resources: 1 destroyed.

Operation

Configuration State Reality Operation
cvm_instance Create
cvm_instance cvm_instance Create
cvm_instance cvm_instance cvm_instance No Ops
cvm_instance cvm_instance Delete
cvm_instance No Ops
cvm_instance Update State

Remote Backend

State File

Terraform Cloud

收费

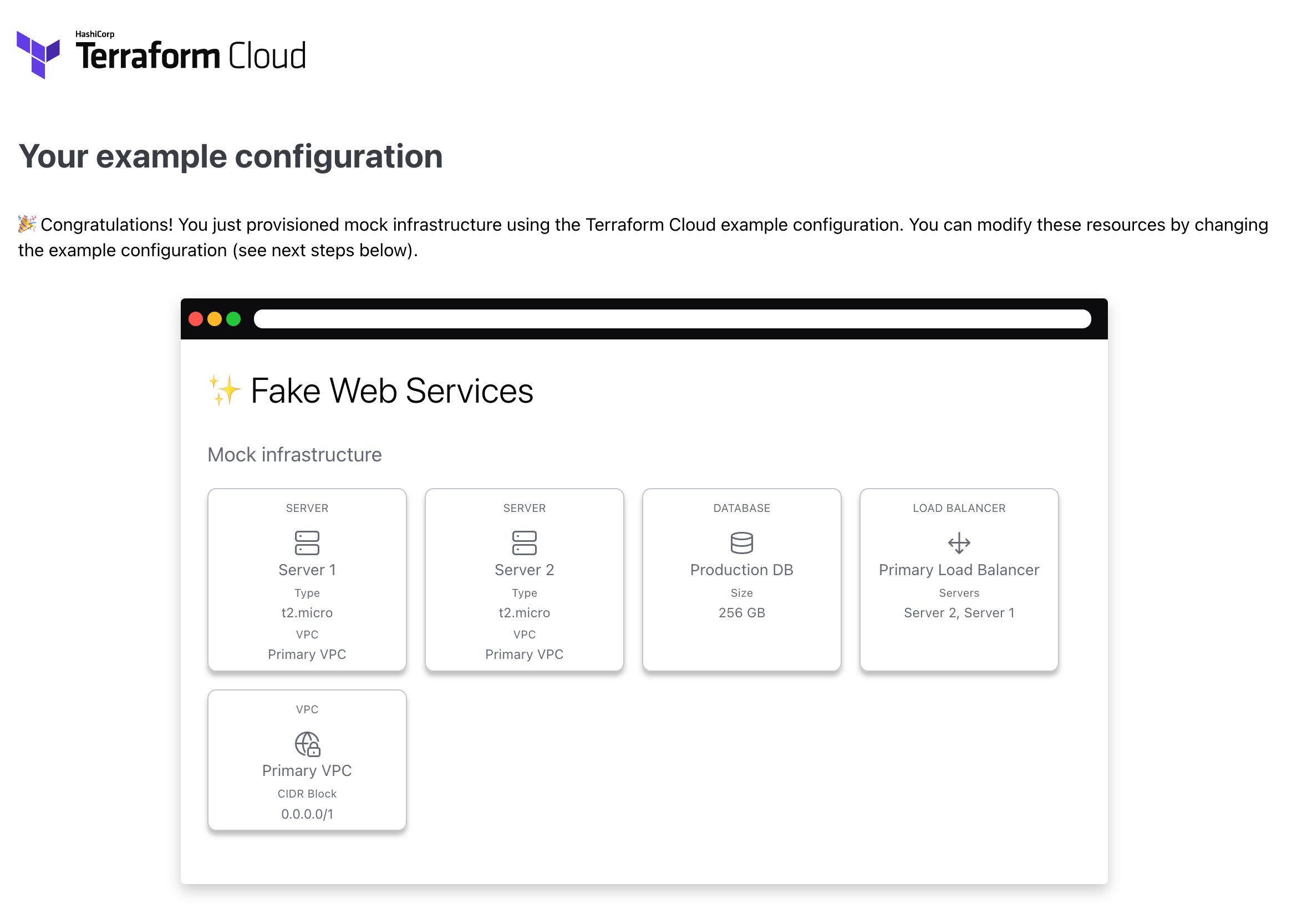

image-20240225202658368

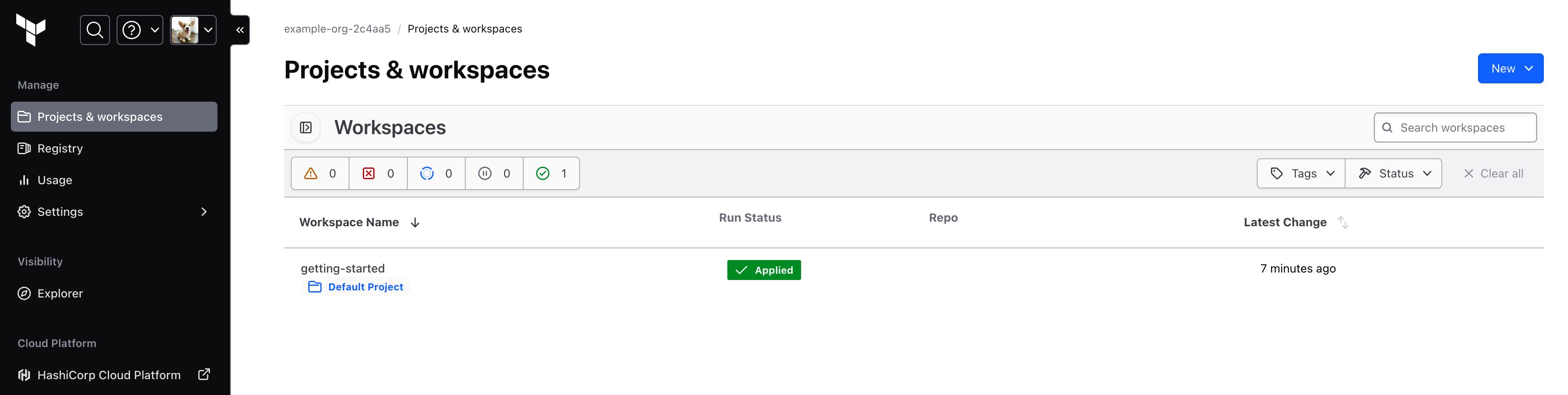

image-20240225202933963

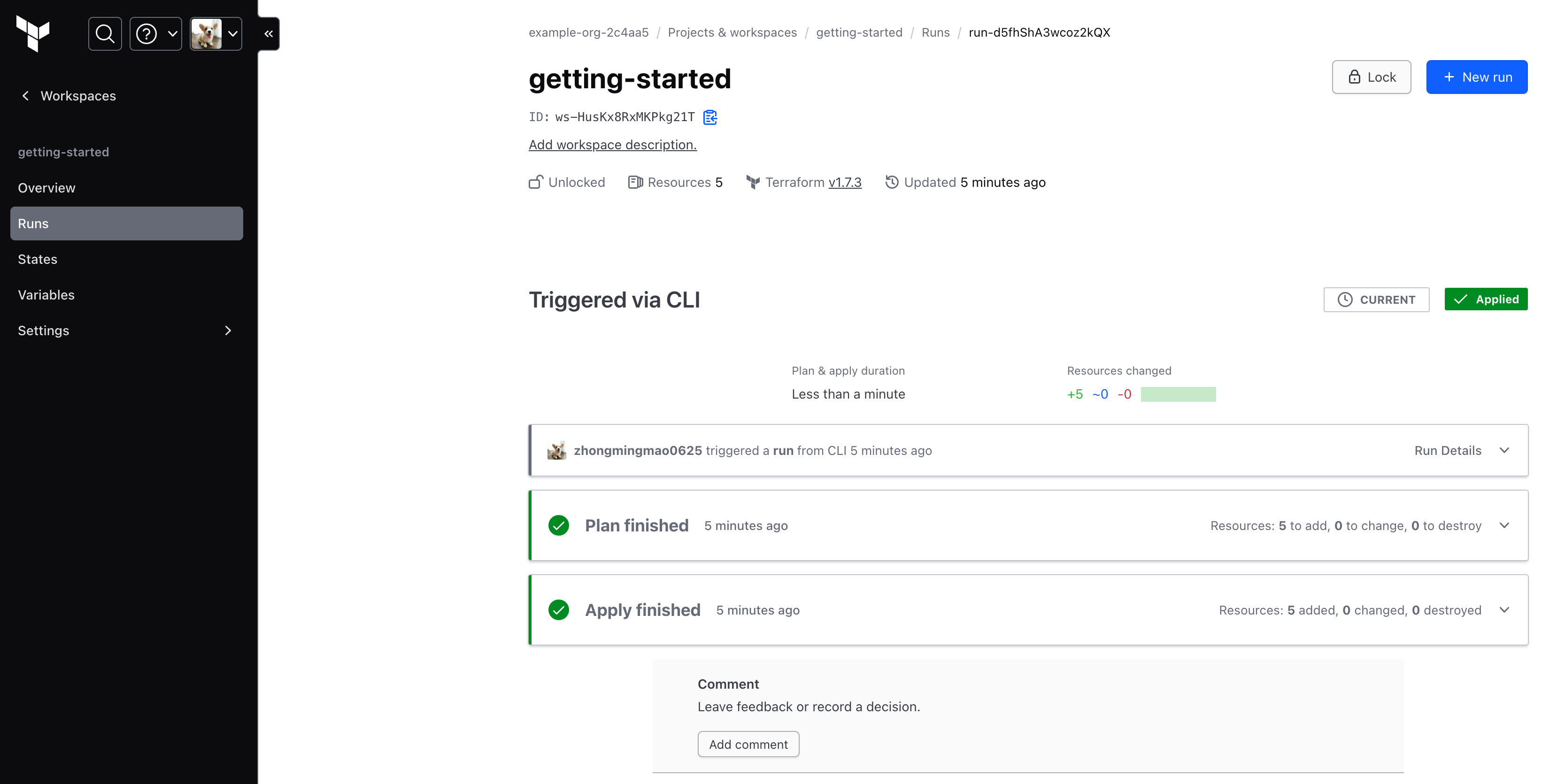

image-20240225202743851

backend.tf
1
2
3
4
5
6
7
8
9
10
11
terraform {
  cloud {
    organization = "example-org-2c4aa5"

    workspaces {
      name = "getting-started"
    }
  }

  required_version = ">= 1.1.2"
}
main.tf
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
resource "fakewebservices_vpc" "primary_vpc" {
  name       = "Primary VPC"
  cidr_block = "0.0.0.0/1"
}

resource "fakewebservices_server" "servers" {
  count = 2

  name = "Server ${count.index + 1}"
  type = "t2.micro"
  vpc  = fakewebservices_vpc.primary_vpc.name
}

resource "fakewebservices_load_balancer" "primary_lb" {
  name    = "Primary Load Balancer"
  servers = fakewebservices_server.servers[*].name
}

resource "fakewebservices_database" "prod_db" {
  name = "Production DB"
  size = 256
}

AWS S3

dynamodb_table - Name of DynamoDB Table to use for state locking and consistency.

encrypt - Enable server side encryption of the state file.

1
2
3
4
5
6
7
8
9
terraform {
  backend "s3" {
    bucket         = "myorg-terraform-states"
    key            = "myapp/production/tfstate"
    region         = "us-east-1"
    dynamodb_table = "TableName"
    encrypt        = true
  }
}

Tencent COS

1
2
3
4
5
6
7
terraform {
  backend "cos" {
    region = "ap-guangzhou"
    bucket = "bucket-for-terraform-state-1258798060"
    prefix = "terraform/state"
  }
}

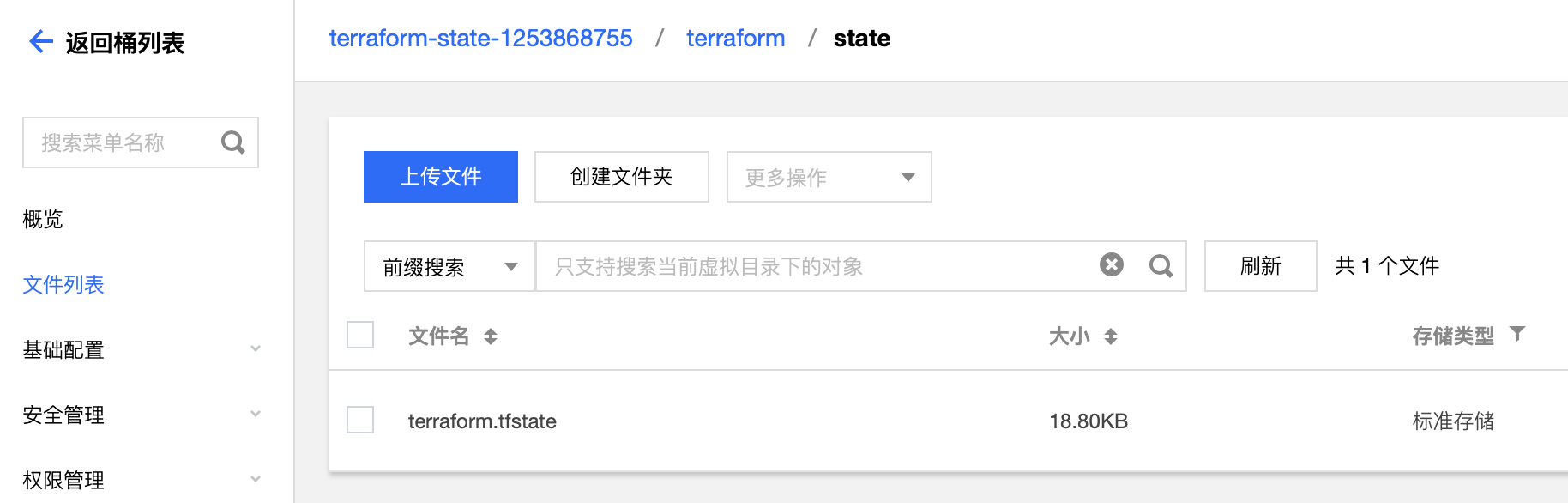

先使用 Local 存储，定义 Remote Backend，再变更 Config，最后执行 init 和 apply，这样 State File 将迁移到远端

本地存储 + 开通 COS

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
terraform {
  required_providers {
    tencentcloud = {
      source = "tencentcloudstack/tencentcloud"
    }
  }
}

# terraform {
#   backend "cos" {
#     region  = "ap-guangzhou"
#     bucket  = "terraform-state-1301578102"
#     prefix  = "terraform/state"
#     encrypt = true
#   }
# }

# Configure the TencentCloud Provider
provider "tencentcloud" {
  region = "ap-guangzhou"
}

# Get availability zones
data "tencentcloud_availability_zones_by_product" "default" {
  product = "cvm"
}

# Get availability images
data "tencentcloud_images" "default" {
  image_type = ["PUBLIC_IMAGE"]
  os_name    = "ubuntu"
}

# Get availability instance types
data "tencentcloud_instance_types" "default" {
  # 机型族
  filter {
    name   = "instance-family"
    values = ["S5"]
  }

  cpu_core_count = 2
  memory_size    = 2
}

# Create a web server
resource "tencentcloud_instance" "web" {
  depends_on                 = [tencentcloud_security_group_lite_rule.default]
  instance_name              = "web server"
  availability_zone          = data.tencentcloud_availability_zones_by_product.default.zones.0.name
  image_id                   = data.tencentcloud_images.default.images.0.image_id
  instance_type              = data.tencentcloud_instance_types.default.instance_types.0.instance_type
  system_disk_type           = "CLOUD_PREMIUM"
  system_disk_size           = 50
  allocate_public_ip         = true
  internet_max_bandwidth_out = 20
  instance_charge_type       = "SPOTPAID"
  orderly_security_groups    = [tencentcloud_security_group.default.id]
  count                      = 1
}

# Create security group
resource "tencentcloud_security_group" "default" {
  name        = "web accessibility"
  description = "make it accessible for both production and stage ports"
}

# Create security group rule allow ssh request
resource "tencentcloud_security_group_lite_rule" "default" {
  security_group_id = tencentcloud_security_group.default.id
  ingress = [
    "ACCEPT#0.0.0.0/0#22#TCP",
    "ACCEPT#0.0.0.0/0#6443#TCP",
  ]

  egress = [
    "ACCEPT#0.0.0.0/0#ALL#ALL"
  ]
}


# COS
data "tencentcloud_user_info" "info" {}

locals {
  app_id = data.tencentcloud_user_info.info.app_id
}

resource "tencentcloud_cos_bucket" "terraform-state" {
  bucket               = "terraform-state-${local.app_id}"
  acl                  = "private"
  encryption_algorithm = "AES256"
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
$ tfi

$ tfa -auto-approve

$ tfsh
# tencentcloud_cos_bucket.terraform-state:
resource "tencentcloud_cos_bucket" "terraform-state" {
    acceleration_enable  = false
    acl                  = "private"
    bucket               = "terraform-state-1253868755"
    cos_bucket_url       = "terraform-state-1253868755.cos.ap-guangzhou.myqcloud.com"
    encryption_algorithm = "AES256"
    force_clean          = false
    id                   = "terraform-state-1253868755"
    log_enable           = false
    versioning_enable    = false
}

打开 Remote Backend，再次执行 init

1
2
3
4
5
6
7
8
terraform {
  backend "cos" {
    region  = "ap-guangzhou"
    bucket  = "terraform-state-1253868755"
    prefix  = "terraform/state"
    encrypt = true
  }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
$ tfi

Initializing the backend...
Acquiring state lock. This may take a few moments...
Do you want to copy existing state to the new backend?
  Pre-existing state was found while migrating the previous "local" backend to the
  newly configured "cos" backend. No existing state was found in the newly
  configured "cos" backend. Do you want to copy this state to the new "cos"
  backend? Enter "yes" to copy and "no" to start with an empty state.

  Enter a value: yes


Successfully configured the backend "cos"! Terraform will automatically
use this backend unless the backend configuration changes.

Initializing provider plugins...
- Reusing previous version of tencentcloudstack/tencentcloud from the dependency lock file
- Using previously-installed tencentcloudstack/tencentcloud v1.81.23

Terraform has been successfully initialized!

You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.

If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.

image-20240225211026418

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
$ terraform state list
data.tencentcloud_availability_zones_by_product.default
data.tencentcloud_images.default
data.tencentcloud_instance_types.default
data.tencentcloud_user_info.info
tencentcloud_cos_bucket.terraform-state
tencentcloud_instance.web[0]
tencentcloud_security_group.default
tencentcloud_security_group_lite_rule.default

$ tree -a
.
|-- cvm.tf
|-- .terraform
|   |-- providers
|   |   `-- registry.terraform.io
|   |       `-- tencentcloudstack
|   |           `-- tencentcloud
|   |               `-- 1.81.23
|   |                   `-- linux_arm64
|   |                       |-- CHANGELOG.md
|   |                       |-- LICENSE
|   |                       |-- README.md
|   |                       `-- terraform-provider-tencentcloud_v1.81.23
|   `-- terraform.tfstate
|-- .terraform.lock.hcl
|-- terraform.tfstate
`-- terraform.tfstate.backup

$ du -sh terraform.tfstate
0    terraform.tfstate

$ cat .terraform/terraform.tfstate
{
    "version": 3,
    "serial": 1,
    "lineage": "be18a710-9501-3a04-d146-8311b4b28b74",
    "backend": {
        "type": "cos",
        "config": {
            "accelerate": null,
            "acl": null,
            "assume_role": [],
            "bucket": "terraform-state-1253868755",
            "domain": null,
            "encrypt": true,
            "endpoint": null,
            "key": null,
            "prefix": "terraform/state",
            "region": "ap-guangzhou",
            "secret_id": null,
            "secret_key": null,
            "security_token": null
        },
        "hash": 2906183806
    },
    "modules": [
        {
            "path": [
                "root"
            ],
            "outputs": {},
            "resources": {},
            "depends_on": []
        }
    ]
}

Layout

1
2
3
4
5
6
7
$ tree -a
.
|-- main.tf
|-- outputs.tf
|-- variables.tf
`-- version.tf

File Desc
main.tf 主要的业务逻辑
outputs.tf 定义输出内容
variables.tf 定义变量参数
version.tf 定义依赖和版本

outputs.tf

1
2
3
4
5
output "public_ip" {
  description = "vm public ip address"
  value       = tencentcloud_instance.web[0].public_ip
  sensitive   = true
}
  1. 定义运行结束后所需要输出的内容
  2. 可设置是否为敏感数据（不输出）
  3. 可以引用其它 Resource 的的输出内容

variables.tf

1
2
3
4
5
6
7
8
9
10
variable "prefix" {
  type        = string
  default     = "30"
  description = "xxx"
  verification {
    condition     = length(var.prefix) > 3
    error_message = "prefix must be logger than 3"
  }
  sensitive =  true
}
1
2
3
4
5
6
7
8
resource "cloudflare_record" "jenkins" {
  zone_id         = data.cloudflare_zone.this.id
  name            = "jenkins.${var.prefix}.${var.domain}"
  value           = tencentcloud_instance.ubuntu[0].public_ip
  type            = "A"
  ttl             = 60
  allow_overwrite = true
}
  1. 定义参数变量，用于在代码中应用
  2. 可以定义：类型、默认值、描述、验证函数、是否敏感数据（不在 Plan 中显示）
  3. 设置方式（优先级，从高到低）
Method Example
命令行参数 terraform apply -var="prefix=values"
配置文件 terraform apply -var-file="testing.tfvars"
环境变量 export TF_VAR_prefix=values
默认值 default
交互式输入 兜底缺失值

version.tf

1
2
3
4
5
6
7
8
9
terraform {
  required_version = "> 0.13.0"
  required_providers {
    cloudflare = {
      source  = "cloudflare/cloudflare"
      version = "~> 4.0"
    }
  }
}
  1. 定义 Terraform CLI 最低要求版本
  2. 定义项目的 Provider 依赖以及特定版本

Practice

过程（有顺序）

  1. 开通 VM
  2. 安装 K3S
  3. 安装 Argo CD
  4. 查看依赖关系：terraform graph | dot -Tsvg > graph.svg
1
2
3
4
5
6
7
8
$ tree
.
|-- cvm.tf
|-- helm.tf
|-- k3s.tf
|-- outputs.tf
|-- variables.tf
`-- version.tf

Config

version.tf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
terraform {
  required_version = "> 0.13.0"
  required_providers {
    tencentcloud = {
      source  = "tencentcloudstack/tencentcloud"
      version = "1.81.5"
    }

    helm = {
      source  = "hashicorp/helm"
      version = "~> 2.11"
    }
  }
}

provider "helm" {
  kubernetes {
    config_path = local_sensitive_file.kubeconfig.filename
  }
}

variables.tf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
variable "secret_id" {
  default = "xxx"
}

variable "secret_key" {
  default = "yyy"
}

variable "regoin" {
  default = "ap-hongkong"
}

variable "password" {
  default = "zzz"
}

cvm.tf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
# Configure the TencentCloud Provider
provider "tencentcloud" {
  region     = var.regoin
  secret_id  = var.secret_id
  secret_key = var.secret_key
}

# Get availability zones
data "tencentcloud_availability_zones_by_product" "default" {
  product = "cvm"
}

# Get availability images
data "tencentcloud_images" "default" {
  image_type = ["PUBLIC_IMAGE"]
  os_name    = "ubuntu"
}

# Get availability instance types
data "tencentcloud_instance_types" "default" {
  # 机型族
  filter {
    name   = "instance-family"
    values = ["S5"]
  }

  cpu_core_count = 2
  memory_size    = 4
}

# Create a web server
resource "tencentcloud_instance" "web" {
  depends_on                 = [tencentcloud_security_group_lite_rule.default]
  count                      = 1
  instance_name              = "web server"
  availability_zone          = data.tencentcloud_availability_zones_by_product.default.zones.0.name
  image_id                   = data.tencentcloud_images.default.images.0.image_id
  instance_type              = data.tencentcloud_instance_types.default.instance_types.0.instance_type
  system_disk_type           = "CLOUD_PREMIUM"
  system_disk_size           = 50
  allocate_public_ip         = true
  internet_max_bandwidth_out = 100
  instance_charge_type       = "SPOTPAID"
  orderly_security_groups    = [tencentcloud_security_group.default.id]
  password                   = var.password
}

# Create security group
resource "tencentcloud_security_group" "default" {
  name        = "tf-security-group"
  description = "make it accessible for both production and stage ports"
}

# Create security group rule allow ssh request
resource "tencentcloud_security_group_lite_rule" "default" {
  security_group_id = tencentcloud_security_group.default.id
  ingress = [
    "ACCEPT#0.0.0.0/0#22#TCP",
    "ACCEPT#0.0.0.0/0#6443#TCP",
  ]

  egress = [
    "ACCEPT#0.0.0.0/0#ALL#ALL"
  ]
}

k3s.tf

https://registry.terraform.io/modules/xunleii/k3s/module/latest

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
module "k3s" {
  source                   = "xunleii/k3s/module"
  k3s_version              = "v1.25.11+k3s1"
  generate_ca_certificates = true
  global_flags = [
    "--tls-san ${tencentcloud_instance.web[0].public_ip}",
    "--write-kubeconfig-mode 644",
    "--disable=traefik",
    "--kube-controller-manager-arg bind-address=0.0.0.0",
    "--kube-proxy-arg metrics-bind-address=0.0.0.0",
    "--kube-scheduler-arg bind-address=0.0.0.0"
  ]
  k3s_install_env_vars = {}

  servers = {
    "k3s" = {
      ip = tencentcloud_instance.web[0].private_ip
      connection = {
        timeout  = "60s"
        type     = "ssh"
        host     = tencentcloud_instance.web[0].public_ip
        password = var.password
        user     = "ubuntu"
      }
    }
  }
}

resource "local_sensitive_file" "kubeconfig" {
  content  = module.k3s.kube_config
  filename = "${path.module}/config.yaml"
}
  1. --tls-san ${tencentcloud_instance.web[0].public_ip} - 隐式依赖 CVM
  2. tencentcloud_instance.web[0].private_ip - 隐式依赖 CVM

helm.tf

显式依赖 K3S

1
2
3
4
5
6
7
8
resource "helm_release" "argo_cd" {
  depends_on       = [module.k3s]
  name             = "argocd"
  repository       = "https://argoproj.github.io/argo-helm"
  chart            = "argo-cd"
  namespace        = "argocd"
  create_namespace = true
}

在 apply 之前会通过 DAG 分析隐式依赖和显式依赖

init

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
$ tfi

Initializing the backend...
Initializing modules...
Downloading registry.terraform.io/xunleii/k3s/module 3.4.0 for k3s...
- k3s in .terraform/modules/k3s

Initializing provider plugins...
- Reusing previous version of hashicorp/http from the dependency lock file
- Reusing previous version of hashicorp/null from the dependency lock file
- Reusing previous version of hashicorp/random from the dependency lock file
- Reusing previous version of hashicorp/tls from the dependency lock file
- Reusing previous version of tencentcloudstack/tencentcloud from the dependency lock file
- Reusing previous version of hashicorp/helm from the dependency lock file
- Reusing previous version of hashicorp/local from the dependency lock file
- Installing tencentcloudstack/tencentcloud v1.81.5...
- Installed tencentcloudstack/tencentcloud v1.81.5 (signed by a HashiCorp partner, key ID 84F69E1C1BECF459)
- Installing hashicorp/helm v2.11.0...
- Installed hashicorp/helm v2.11.0 (signed by HashiCorp)
- Installing hashicorp/local v2.4.0...
- Installed hashicorp/local v2.4.0 (signed by HashiCorp)
- Installing hashicorp/http v3.4.0...
- Installed hashicorp/http v3.4.0 (signed by HashiCorp)
- Installing hashicorp/null v3.2.1...
- Installed hashicorp/null v3.2.1 (signed by HashiCorp)
- Installing hashicorp/random v3.5.1...
- Installed hashicorp/random v3.5.1 (signed by HashiCorp)
- Installing hashicorp/tls v4.0.4...
- Installed hashicorp/tls v4.0.4 (signed by HashiCorp)

Partner and community providers are signed by their developers.
If you'd like to know more about provider signing, you can read about it here:
https://www.terraform.io/docs/cli/plugins/signing.html

Terraform has made some changes to the provider dependency selections recorded
in the .terraform.lock.hcl file. Review those changes and commit them to your
version control system if they represent changes you intended to make.

Terraform has been successfully initialized!

You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.

If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.

graph

1
$ terraform graph | dot -Tsvg > graph.svg

graph

apply

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
$ tfa -auto-approve
...
Apply complete! Resources: 24 added, 0 changed, 0 destroyed.

Outputs:

kube_config = "./config.yaml"
password = "password123"
public_ip = "43.xxx.226.90"

$ k --kubeconfig=./config.yaml get pod -A
NAMESPACE     NAME                                                READY   STATUS    RESTARTS   AGE
kube-system   local-path-provisioner-69dff9496c-nbbnp             1/1     Running   0          6m56s
kube-system   coredns-8b9777675-kg626                             1/1     Running   0          6m56s
kube-system   metrics-server-854c559bd-q5hl8                      1/1     Running   0          6m56s
argocd        argocd-redis-78b5b89956-6pjx5                       1/1     Running   0          6m38s
argocd        argocd-applicationset-controller-5c458c8c48-z9bfn   1/1     Running   0          6m37s
argocd        argocd-notifications-controller-d9445794f-9tbxs     1/1     Running   0          6m38s
argocd        argocd-server-6b895dc5b-nrnjx                       1/1     Running   0          6m38s
argocd        argocd-dex-server-79f689689d-qw5w5                  1/1     Running   0          6m38s
argocd        argocd-repo-server-68bbd457dd-wpc9v                 1/1     Running   0          6m38s
argocd        argocd-application-controller-0                     1/1     Running   0          6m37s

$ k --kubeconfig=./config.yaml get secrets -n argocd argocd-initial-admin-secret -ojsonpath='{.data.password}' | base64 -d
xxxx

$ k --kubeconfig=./config.yaml port-forward -n argocd svc/argocd-server 8888:80 --address 0.0.0.0
Forwarding from 0.0.0.0:8888 -> 8080

image-20240225224958121

表达式 + 函数

表达式

  1. 模板变量
  2. 值引用
  3. 运算符
  4. 条件表达式
  5. For 表达式
  6. Splat 表达式
  7. 动态块
  8. 条件约束（变量类型、版本）

函数

  1. 数值函数
  2. 字符串函数
  3. 集合函数
  4. 编码函数
  5. 文件系统函数
  6. 时间日期函数
  7. 哈希和加密函数
  8. 类型转换函数

Meta Arguments

  1. Scope: resource / modules

  2. Arguments

    • depends_on

    • count

    • for_each

    • lifecycle

depends_on

  1. Terraform 根据引用自动生成资源的 DAG
  2. 根据 DAG 来创建和销毁过程（有顺序）
  3. 可以通过 depends_on 显式指定依赖关系，控制创建和销毁顺序
  4. 可以通过 terraform graph | dot -Tsvg > graph.svg 生成依赖图
1
2
3
4
5
6
7
8
resource "helm_release" "argo_cd" {
  depends_on       = [module.k3s]
  name             = "argocd"
  repository       = "https://argoproj.github.io/argo-helm"
  chart            = "argo-cd"
  namespace        = "argocd"
  create_namespace = true
}

count

指定创建 N 个相同资源

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
# Create a web server
resource "tencentcloud_instance" "web" {
  count                      = 4
  instance_name              = "web server"
  availability_zone          = data.tencentcloud_availability_zones_by_product.default.zones.0.name
  image_id                   = data.tencentcloud_images.default.images.0.image_id
  instance_type              = data.tencentcloud_instance_types.default.instance_types.0.instance_type
  system_disk_type           = "CLOUD_PREMIUM"
  system_disk_size           = 50
  allocate_public_ip         = true
  internet_max_bandwidth_out = 20
  instance_charge_type       = "SPOTPAID"
  orderly_security_groups    = [tencentcloud_security_group.default.id]
  depends_on                 = [tencentcloud_security_group_lite_rule.default]
}

for_each

在单个块中创建多个不同的资源

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
locals {
  subnet_ids = toSet([
    "subnet-abcd",
    "subnet-0123"
  ])
}

resource "aws_instance" "server" {
    for_each = locals.subnet_ids

    subnet_id = each.key

    tags = {
        Name = "Server ${each.key}"
    }
}

lifecycle

使用较少

Provisioners

在本地或者远端虚拟机中执行动作

Type Desc
file 将本地文件或者目录复制到远端虚拟机
local-exec 在本地执行一段命令
remote-exec 在远端虚拟机中执行命令
vendor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
resource "null_resource" "connect_ubuntu" {
  connection {
    host     = tencentcloud_instance.ubuntu[0].public_ip
    type     = "ssh"
    user     = "ubuntu"
    password = var.password
    //private_key = file("ssh-key/id_rsa")
    //agent = false
  }

...

  # kube-prometheus-stack
  provisioner "file" {
    destination = "/tmp/kube-prometheus-stack-values.yaml"
    content = templatefile(
      "${path.module}/prometheus/values.yaml.tpl",
      {
        "domain" : "${var.prefix}.${var.domain}"
        "grafana_password" : "${var.grafana_password}"
      }
    )
  }

  ...

  provisioner "remote-exec" {
    # script = "/tmp/init.sh"
    inline = [
      "chmod +x /tmp/init.sh",
      "sh /tmp/init.sh",
    ]
  }

...
}

Multi Environment

Directory

  1. 为不同的环境创建对应的目录
  2. 本质上区分 State File
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
$ tree
.
|-- dev
|   |-- helm.tf
|   |-- k3s.tf
|   |-- main.tf
|   |-- outputs.tf
|   |-- variables.tf
|   `-- version.tf
`-- testing
    |-- helm.tf
    |-- k3s.tf
    |-- main.tf
    |-- outputs.tf
    |-- variables.tf
    `-- version.tf

需要同时修改多个环境，可维护性差、代码复用性差

Workspace

区分 State File

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
$ terraform workspace list
* default

$ terraform workspace new dev
Created and switched to workspace "dev"!

You're now on a new, empty workspace. Workspaces isolate their state,
so if you run "terraform plan" Terraform will not see any existing state
for this configuration.

$ terraform workspace list
  default
* dev

$ terraform workspace new testing
Created and switched to workspace "testing"!

You're now on a new, empty workspace. Workspaces isolate their state,
so if you run "terraform plan" Terraform will not see any existing state
for this configuration.

$ terraform workspace list
  default
  dev
* testing

$ tree -L 2 terraform.tfstate.d .terraform
terraform.tfstate.d
|-- dev
|   `-- terraform.tfstate
`-- testing
    `-- terraform.tfstate
.terraform
|-- environment
|-- modules
|   |-- k3s
|   `-- modules.json
`-- providers
    `-- registry.terraform.io

$ cat .terraform/environment
testing

Workspace vs Directory

Workspace Directory
一套代码 N 个环境，实现了代码复用 需要同时修改多个环境的代码
增加了执行上下文的概念，容易出错 - 不推荐使用 环境目录清晰，不容易出错
需要通过 terraform workspace list 查看当前执行上下文 可维护性差、代码复用性差
通过 terraform.tfstate.d 目录区分 State File

Module

  1. Module 是复用 Terraform 代码的主要方式
  2. 更好地组织和管理 IaC 源码：配置、微服务、角色
  3. Module 类型
    • Root Module：包含所有工作目录下的 .tf 文件，默认模块
    • Sub Module：通过 .tf 文件引用的外部模块
      • Local
      • Terraform Registry
      • HTTP
      • GIT
      • S3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
$ tree -a
.
|-- modules
|   |-- cvm
|   |   |-- main.tf
|   |   |-- output.tf
|   |   |-- variables.tf
|   |   `-- version.tf
|   `-- k3s
|       |-- main.tf
|       |-- output.tf
|       `-- variables.tf
|-- dev
|   |-- main.tf
|   `-- variables.tf
`-- testing
    |-- main.tf
    `-- variables.tf

modules

cvm

cvm/version.tf

1
2
3
4
5
6
7
8
9
terraform {
  required_version = "> 0.13.0"
  required_providers {
    tencentcloud = {
      source  = "tencentcloudstack/tencentcloud"
      version = "1.81.5"
    }
  }
}

cvm/variables.tf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
variable "secret_id" {
  default = "Your Access ID"
}

variable "secret_key" {
  default = "Your Access Key"
}

variable "region" {
  default = "ap-hongkong"
}

variable "password" {
  default = "password123"
}

cvm/output.tf

1
2
3
4
5
6
7
8
9
output "public_ip" {
  description = "vm public ip address"
  value       = tencentcloud_instance.web[0].public_ip
}

output "private_ip" {
  description = "vm private ip address"
  value       = tencentcloud_instance.web[0].private_ip
}

cvm/main.tf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
# Configure the TencentCloud Provider
provider "tencentcloud" {
  region     = var.region
  secret_id  = var.secret_id
  secret_key = var.secret_key
}

# Get availability zones
data "tencentcloud_availability_zones_by_product" "default" {
  product = "cvm"
}

# Get availability images
data "tencentcloud_images" "default" {
  image_type = ["PUBLIC_IMAGE"]
  os_name    = "ubuntu"
}

# Get availability instance types
data "tencentcloud_instance_types" "default" {
  # 机型族
  filter {
    name   = "instance-family"
    values = ["S5"]
  }

  cpu_core_count = 2
  memory_size    = 4
}

# Create security group
resource "tencentcloud_security_group" "default" {
  name        = "tf-security-group"
  description = "make it accessible for both production and stage ports"
}

# Create security group rule allow ssh request
resource "tencentcloud_security_group_lite_rule" "default" {
  security_group_id = tencentcloud_security_group.default.id
  ingress = [
    "ACCEPT#0.0.0.0/0#22#TCP",
    "ACCEPT#0.0.0.0/0#6443#TCP",
  ]

  egress = [
    "ACCEPT#0.0.0.0/0#ALL#ALL"
  ]
}

# Create a web server
resource "tencentcloud_instance" "web" {
  depends_on                 = [tencentcloud_security_group_lite_rule.default]
  count                      = 1
  instance_name              = "web server"
  availability_zone          = data.tencentcloud_availability_zones_by_product.default.zones.0.name
  image_id                   = data.tencentcloud_images.default.images.0.image_id
  instance_type              = data.tencentcloud_instance_types.default.instance_types.0.instance_type
  system_disk_type           = "CLOUD_PREMIUM"
  system_disk_size           = 50
  allocate_public_ip         = true
  internet_max_bandwidth_out = 100
  instance_charge_type       = "SPOTPAID"
  orderly_security_groups    = [tencentcloud_security_group.default.id]
  password                   = var.password
}
k3s

k3s/variables.tf

1
2
3
4
5
6
7
variable "password" {
  default = "password123"
}

variable "public_ip" {}

variable "private_ip" {}

k3s/output.tf

1
2
3
4
5
6
7
output "kube_config" {
  value = module.k3s.kube_config
}

output "kubernetes" {
  value = module.k3s.kubernetes
}

k3s/main.tf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
module "k3s" {
  source                   = "xunleii/k3s/module"
  k3s_version              = "v1.25.11+k3s1"
  generate_ca_certificates = true
  global_flags = [
    "--tls-san ${var.public_ip}",
    "--write-kubeconfig-mode 644",
    "--disable=traefik",
    "--kube-controller-manager-arg bind-address=0.0.0.0",
    "--kube-proxy-arg metrics-bind-address=0.0.0.0",
    "--kube-scheduler-arg bind-address=0.0.0.0"
  ]
  k3s_install_env_vars = {}

  servers = {
    "k3s" = {
      ip = var.private_ip
      connection = {
        timeout  = "60s"
        type     = "ssh"
        host     = var.public_ip
        password = var.password
        user     = "ubuntu"
      }
    }
  }
}

dev

dev/main.tf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
module "cvm" {
  source     = "../modules/cvm"
  secret_id  = var.secret_id
  secret_key = var.secret_key
  password   = var.password
}

module "k3s" {
  source     = "../modules/k3s"
  public_ip  = module.cvm.public_ip
  private_ip = module.cvm.private_ip
}

resource "local_sensitive_file" "kubeconfig" {
  content  = module.k3s.kube_config
  filename = "${path.module}/config.yaml"
}

dev/variables.tf

1
2
3
4
5
6
7
variable "secret_id" {
  default = "Your Access ID"
}

variable "secret_key" {
  default = "Your Access Key"
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
$ cd dev/

$ tfi

Initializing the backend...
Initializing modules...
- cvm in ../modules/cvm
- k3s in ../modules/k3s
Downloading registry.terraform.io/xunleii/k3s/module 3.4.0 for k3s.k3s...
- k3s.k3s in .terraform/modules/k3s.k3s

Initializing provider plugins...
- Reusing previous version of hashicorp/http from the dependency lock file
- Reusing previous version of hashicorp/local from the dependency lock file
- Reusing previous version of tencentcloudstack/tencentcloud from the dependency lock file
- Reusing previous version of hashicorp/null from the dependency lock file
- Reusing previous version of hashicorp/random from the dependency lock file
- Reusing previous version of hashicorp/tls from the dependency lock file
- Installing tencentcloudstack/tencentcloud v1.81.5...
- Installed tencentcloudstack/tencentcloud v1.81.5 (signed by a HashiCorp partner, key ID 84F69E1C1BECF459)
- Installing hashicorp/null v3.2.1...
- Installed hashicorp/null v3.2.1 (signed by HashiCorp)
- Installing hashicorp/random v3.5.1...
- Installed hashicorp/random v3.5.1 (signed by HashiCorp)
- Installing hashicorp/tls v4.0.4...
- Installed hashicorp/tls v4.0.4 (signed by HashiCorp)
- Installing hashicorp/http v3.4.0...
- Installed hashicorp/http v3.4.0 (signed by HashiCorp)
- Installing hashicorp/local v2.4.0...
- Installed hashicorp/local v2.4.0 (signed by HashiCorp)

Partner and community providers are signed by their developers.
If you'd like to know more about provider signing, you can read about it here:
https://www.terraform.io/docs/cli/plugins/signing.html

Terraform has made some changes to the provider dependency selections recorded
in the .terraform.lock.hcl file. Review those changes and commit them to your
version control system if they represent changes you intended to make.

Terraform has been successfully initialized!

You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.

If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.

$ tree -L 3 -a
.
|-- main.tf
|-- .terraform
|   |-- modules
|   |   |-- k3s.k3s
|   |   `-- modules.json
|   `-- providers
|       `-- registry.terraform.io
|-- .terraform.lock.hcl
`-- variables.tf

$ cat .terraform/modules/modules.json | jq
{
  "Modules": [
    {
      "Key": "",
      "Source": "",
      "Dir": "."
    },
    {
      "Key": "cvm",
      "Source": "../modules/cvm",
      "Dir": "../modules/cvm"
    },
    {
      "Key": "k3s",
      "Source": "../modules/k3s",
      "Dir": "../modules/k3s"
    },
    {
      "Key": "k3s.k3s",
      "Source": "registry.terraform.io/xunleii/k3s/module",
      "Version": "3.4.0",
      "Dir": ".terraform/modules/k3s.k3s"
    }
  ]
}
1
2
3
4
5
6
7
$ tfa -auto-approve

$ k --kubeconfig=./config.yaml get pod -A
NAMESPACE     NAME                                      READY   STATUS    RESTARTS   AGE
kube-system   local-path-provisioner-69dff9496c-q7g25   1/1     Running   0          4m14s
kube-system   coredns-8b9777675-zfwp6                   1/1     Running   0          4m14s
kube-system   metrics-server-854c559bd-8t2j7            1/1     Running   0          4m14s

抽象原则

  1. 以产品或者功能拆分模块
  2. 为模块设置必要的入参和逻辑条件判断
  3. 为模块的输入提供有用的默认值
  4. 设置输出，便于与其它模块进一步集成（Pipeline）

Terragrunt

类似于 Helm - K8S Manifest，适用于大型组织，使用较少

image-20240226224551931

  1. Terraform 包装器
  2. 减少重复代码
  3. 多账户支持
  4. 大规模场景组织 IaC 代码
  5. IaC 生成器

Layout

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
$ tree
.
|-- deploy
|   |-- department1
|   |   |-- team1
|   |   |   |-- account.hcl
|   |   |   `-- cvm
|   |   |       `-- terragrunt.hcl
|   |   `-- team2
|   |       |-- account.hcl
|   |       `-- cvm
|   |           `-- terragrunt.hcl
|   `-- terragrunt.hcl
|-- modules
|   |-- cos
|   |   |-- main.tf
|   |   |-- outputs.tf
|   |   |-- variables.tf
|   |   `-- version.tf
|   `-- cvm
|       |-- main.tf
|       |-- outputs.tf
|       |-- variables.tf
|       `-- version.tf
`-- terragrunt.hcl
  1. 对 Terraform 版本支持的问题
  2. 社区（不活跃）和维护问题
  3. Terraform + Module 仍是主流

Pulumi

IaC SDK，可以再造 Terraform

  1. 在代码里使用 IaC
  2. 支持多语言
  3. 抽象层：更高层的封装调用
  4. 多云支持

image-20240226231540641

Crossplane

基于 Crossplane，可以快速自建 PaaS 平台，提供 Runtime

image-20240226231908707

  1. K8S 控制器，CRD 方式定义资源
  2. 无需代码，声明式 API
  3. 基础设施控制平面 - 类似于 Terraform Cloud
  4. 多云与混合云支持
  5. 可以在 K8S 中运行 Terraform

Architecture

image-20240302202336519

Provider

Terraform - 可以白嫖 Terraform 生态

image-20240226233449389

Tencent Cloud

image-20240226233039421

image-20240226233925645

Installation

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
$ helm repo add crossplane-stable https://charts.crossplane.io/stable
"crossplane-stable" has been added to your repositories

$ helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "crossplane-stable" chart repository
Update Complete. ⎈Happy Helming!⎈

$ helm install crossplane \
--namespace crossplane-system \
--create-namespace crossplane-stable/crossplane
NAME: crossplane
LAST DEPLOYED: Mon Feb 26 23:44:06 2023
NAMESPACE: crossplane-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
Release: crossplane

Chart Name: crossplane
Chart Description: Crossplane is an open source Kubernetes add-on that enables platform teams to assemble infrastructure from multiple vendors, and expose higher level self-service APIs for application teams to consume.
Chart Version: 1.15.0
Chart Application Version: 1.15.0

Kube Version: v1.28.3

$ k get pods -n crossplane-system
NAME                                       READY   STATUS    RESTARTS   AGE
crossplane-6494656b8b-r5mfh                1/1     Running   0          46s
crossplane-rbac-manager-8458557cdd-8h5n7   1/1     Running   0          46s

CVM

YAML

1
2
3
4
5
6
7
8
9
$ tree
.
|-- cvm
|   |-- cvm.yaml
|   |-- subnet.yaml
|   `-- vpc.yaml
|-- providerConfig.yaml
|-- provider.yaml
`-- secret.yaml

provider.yaml

1
2
3
4
5
6
apiVersion: pkg.crossplane.io/v1
kind: Provider
metadata:
  name: provider-tencentcloud
spec:
  package: xpkg.upbound.io/crossplane-contrib/provider-tencentcloud:v0.6.0

secret.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
apiVersion: v1
kind: Secret
metadata:
  name: example-creds
  namespace: crossplane-system
type: Opaque
stringData:
  credentials: |
    {
      "secret_id": "",
      "secret_key": "",
      "region": "ap-hongkong"
    }

providerConfig.yaml

1
2
3
4
5
6
7
8
9
10
11
apiVersion: tencentcloud.crossplane.io/v1alpha1
kind: ProviderConfig
metadata:
  name: default
spec:
  credentials:
    secretRef:
      key: credentials
      name: example-creds
      namespace: crossplane-system
    source: Secret

cvm/vpc.yaml

1
2
3
4
5
6
7
8
apiVersion: vpc.tencentcloud.crossplane.io/v1alpha1
kind: VPC
metadata:
  name: example-cvm-vpc
spec:
  forProvider:
    cidrBlock: "10.2.0.0/16"
    name: "test-crossplane-cvm-vpc"

cvm/subnet.yaml

1
2
3
4
5
6
7
8
9
10
11
apiVersion: vpc.tencentcloud.crossplane.io/v1alpha1
kind: Subnet
metadata:
  name: example-cvm-subnet
spec:
  forProvider:
    availabilityZone: "ap-hongkong-2"
    cidrBlock: "10.2.2.0/24"
    name: "test-crossplane-cvm-subnet"
    vpcidRef:
      name: "example-cvm-vpc"

cvm/cvm.yaml - 隐式依赖 vpc 和 subnet

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
apiVersion: cvm.tencentcloud.crossplane.io/v1alpha1
kind: Instance
metadata:
  name: example-cvm
spec:
  forProvider:
    instanceName: "test-crossplane-cvm"
    availabilityZone: "ap-hongkong-2"
    instanceChargeType: "SPOTPAID"
    imageId: "img-487zeit5"
    instanceType: "S5.MEDIUM2"
    systemDiskType: "CLOUD_PREMIUM"
    vpcidRef:
      name: "example-cvm-vpc"
    subnetIdRef:
      name: "example-cvm-subnet"

Operation

安装 Provider

1
2
3
4
5
6
7
8
9
10
11
12
13
14
$ k apply -f provider.yaml
provider.pkg.crossplane.io/provider-tencentcloud created

$ k get provider
NAME                    INSTALLED   HEALTHY   PACKAGE                                                           AGE
provider-tencentcloud   True        Unknown   xpkg.upbound.io/crossplane-contrib/provider-tencentcloud:v0.6.0   35s

$ k apply -f secret.yaml -f providerConfig.yaml
secret/example-creds created
providerconfig.tencentcloud.crossplane.io/default created

$ k get providers
NAME                    INSTALLED   HEALTHY   PACKAGE                                                           AGE
provider-tencentcloud   True        True      xpkg.upbound.io/crossplane-contrib/provider-tencentcloud:v0.6.0   42m

安装：私有网络 / 子网 / 云服务器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
$ k apply -f cvm
instance.cvm.tencentcloud.crossplane.io/example-cvm created
subnet.vpc.tencentcloud.crossplane.io/example-cvm-subnet created
vpc.vpc.tencentcloud.crossplane.io/example-cvm-vpc created

$ k get vpcs.vpc.tencentcloud.crossplane.io
NAME              READY   SYNCED   EXTERNAL-NAME   AGE
example-cvm-vpc   True    True     vpc-lvgkm1cg    118s

$ k get subnets.vpc.tencentcloud.crossplane.io
NAME                 READY   SYNCED   EXTERNAL-NAME     AGE
example-cvm-subnet   True    True     subnet-q5fwr275   2m22s

$ k get instances.cvm.tencentcloud.crossplane.io
NAME          READY   SYNCED   EXTERNAL-NAME   AGE
example-cvm   True    True     ins-b05ee9a8    94s

image-20240302152639173

image-20240302152711963

image-20240302152738289

销毁资源

1
2
3
4
$ k delete -f cvm
instance.cvm.tencentcloud.crossplane.io "example-cvm" deleted
subnet.vpc.tencentcloud.crossplane.io "example-cvm-subnet" deleted
vpc.vpc.tencentcloud.crossplane.io "example-cvm-vpc" deleted

PaaS

Argo CD

image-20240302155023624

Terraform

白嫖 Terraform 生态

image-20240302162159902

1
2
3
4
5
$ tree .
.
|-- cvm.yaml
|-- providerConfig.yaml
`-- provider.yaml

provider.yaml

1
2
3
4
5
6
apiVersion: pkg.crossplane.io/v1
kind: Provider
metadata:
  name: provider-terraform
spec:
  package: xpkg.upbound.io/upbound/provider-terraform:v0.10.0

providerConfig.yaml - 声明 backend 为 kubernetes

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
apiVersion: tf.upbound.io/v1beta1
kind: ProviderConfig
metadata:
  name: default
spec:
  configuration: |
    terraform {
      required_providers {
        tencentcloud = {
          source = "tencentcloudstack/tencentcloud"
        }
      }
    }

    provider "tencentcloud" {
      # edit me
      secret_id  = ""
      secret_key = ""
      region     = "ap-hongkong"
    }

    // Modules _must_ use remote state. The provider does not persist state.
    terraform {
      backend "kubernetes" {
        secret_suffix     = "providerconfig-default"
        namespace         = "crossplane-system"
        in_cluster_config = true
      }
    }

cvm.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
apiVersion: tf.upbound.io/v1beta1
kind: Workspace
metadata:
  name: cvm
spec:
  forProvider:
    source: Inline
    module: |
      data "tencentcloud_availability_zones_by_product" "default" {
        product = "cvm"
      }

      # Get availability images
      data "tencentcloud_images" "default" {
        image_type = ["PUBLIC_IMAGE"]
        os_name    = "ubuntu"
      }

      # Get availability instance types
      data "tencentcloud_instance_types" "default" {
        filter {
          name   = "instance-family"
          values = ["S5"]
        }

        cpu_core_count = 2
        memory_size    = 4
      }

      # Create security group
      resource "tencentcloud_security_group" "default" {
        name        = "tf-security-group"
        description = "make it accessible for both production and stage ports"
      }

      # Create security group rule allow ssh request
      resource "tencentcloud_security_group_lite_rule" "default" {
        security_group_id = tencentcloud_security_group.default.id
        ingress = [
          "ACCEPT#0.0.0.0/0#22#TCP",
          "ACCEPT#0.0.0.0/0#6443#TCP",
        ]

        egress = [
          "ACCEPT#0.0.0.0/0#ALL#ALL"
        ]
      }

      # Create a web server
      resource "tencentcloud_instance" "web" {
        depends_on                 = [tencentcloud_security_group_lite_rule.default]
        count                      = 1
        instance_name              = "web server"
        availability_zone          = data.tencentcloud_availability_zones_by_product.default.zones.0.name
        image_id                   = data.tencentcloud_images.default.images.0.image_id
        instance_type              = data.tencentcloud_instance_types.default.instance_types.0.instance_type
        system_disk_type           = "CLOUD_PREMIUM"
        system_disk_size           = 50
        allocate_public_ip         = true
        internet_max_bandwidth_out = 100
        instance_charge_type       = "SPOTPAID"
        orderly_security_groups    = [tencentcloud_security_group.default.id]
        password                   = var.cvm_password
      }
      variable "cvm_password" {
        description = "user ubuntu password"
        type        = string
      }
    vars:
      - key: cvm_password
        value: password123

安装 Provider

1
2
3
4
5
6
7
8
9
$ k apply -f provider.yaml
provider.pkg.crossplane.io/provider-terraform created

$ k get provider.pkg.crossplane.io/provider-terraform
NAME                 INSTALLED   HEALTHY   PACKAGE                                              AGE
provider-terraform   True        True      xpkg.upbound.io/upbound/provider-terraform:v0.10.0   75s

$ k apply -f providerConfig.yaml
providerconfig.tf.upbound.io/default created

创建 CVM

1
2
3
4
5
6
$ k apply -f cvm.yaml
workspace.tf.upbound.io/cvm created

$ k get workspaces.tf.upbound.io
NAME   READY   SYNCED   AGE
cvm    True    True     116s

image-20240302164148873

销毁资源

1
2
$ k delete -f cvm.yaml
workspace.tf.upbound.io "cvm" deleted
